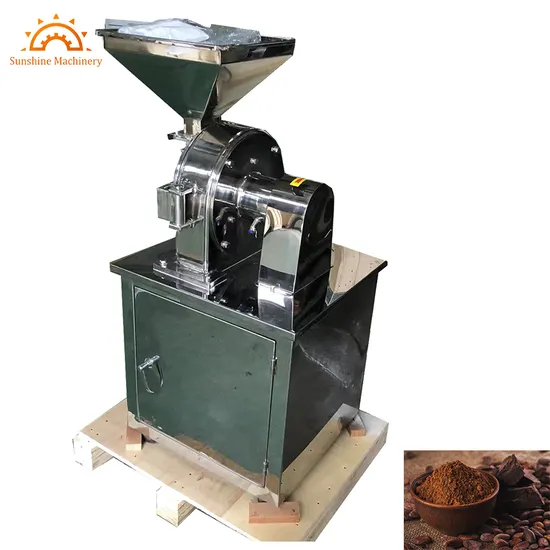

Wind Wheel Type Good Effect Wheat Pepper Grinder Machine

Product Description

Wind wheel type good effect Wheat pepper grinder machine
Main Function:
This machine is widely used in crushing of the pharmaceutical, food, chemical industry materials crushed. FL cooled mill is designed to improve the well-developed from a new generation of grinder machine is mainly used in chemical, dyes, additives, feed my company in the pulverized material accumulated by the insurance and China's actual conditions , smashing processing, fineness food, medicine, wood, fiber and non-metallic ore and other low hardness material adjustment between 20-120 mesh, high yield, fine grain size, low noise, low power consumption, simple maintenance, installation and easy, especially for oily, sticky, heat-sensitive, fibrous: smashing processing (eg ginger, chili, pepper, oil, wheat, soy almonds, anise, cinnamon) and other low-high hardness materials.
Features:
Crushing chamber uses wind wheel type high speed rotary cutters, so that the chamber's own air volume is big, not easy to heat chamber machine. It has a smooth running, easy to disassemble and clean, low noise, and good crushing effect and so on.
Work Theory:
The machine uses the wind wheel type high speed rotary cutters and the fixed cutters to crush, cut grinding, chamber will produce a strong airflow in the crushing, the heat and finished in the crushing chamber flows out together through the screen, particle size will be obtained by replacing the screen.
Technical parameters:

Model	FL-150	FL-250	FL-350
Capacity(kg/h)	10-20	60-150	100-300
Feeding particle(mm)	12	12	12
Particle size(mesh)	20-120	20-120	20-120
Power(kw)	2.2	4	5.5
Rotation speed(rpm)	3800	3800	3800
Dimension(mm)	500×420×880	550×420×1400	700×600×1650
Weight(kg)	85	200	300
Price(FOB QINGDAO)	2620USD	3180USD	4080USD

Configuration

No.	Name	Specification	Supplier	Qty.
1	Motor	kw	Kaicheng	1 set
2	Electric control part	Chint		1 set
3	Grinder chamber	Stainless steel 304	Made locally	1 piece
4	Grinder frame	Stainless steel 304	Made locally	1 piece
5	Grinder structure	Rotation blades	Made locally	1 set
6	Materials	Stainless steel 304
7	Grinder process	Polishing process	Made locally	Whole machine
8	Main spindle	45#steel	Made locally	1 piece
9	Bearing	6208	Harbin	2 pieces
10	Sieve net	Stainless steel 304	Made locally	1 piece
11	Sieve ring	Stainless steel 304	Made locally	1 set

---
