532nm-2000nm Free Space Acousto Optic Modulator 80MHz-200MHz Customized

Product Description

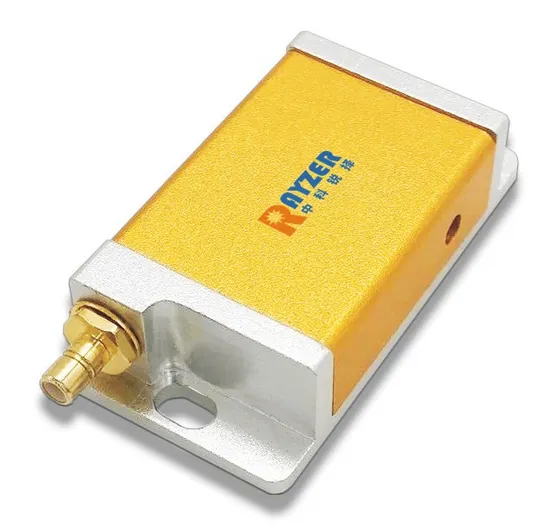

Free Space Acousto Optic Modulator FAOM
CSRAYZER'S Free Space Acousto-Optic Modulator FAOM Series Product, is a kind of laser beam intensity modulation and frequency shift processing product, with high diffraction efficiency and high extinction ratio, low insertion loss. Our Free Space AOM product are with wavelength range 532nm-2000um, and frequency range 60MHz-200MHz. RF driver could be digital and analog modulation type, as per specific requirements.
Specifications

Parameter	Unit	1010~1060nm Wavelength								Comments
Material		TeO2								Customizable
Beam Diameter	mm	0.3		0.7			1	1.5	2	Customizable
Clear Aperture	mm	2*0.3		2*0.7			2*1	2.5*1.5	3*2	Customizable
Center Frequency	MHz	150	200	60	100	120	100	100	100	Customizable
Frequency Shift	MHz	±150	±200	±60	±100	±120	±100	±100	±100
Deflection Angle	mrad	38	50	15	25	30	25	25	25
Frequency Bandwidth	MHz	±10		±10	±20	±10	±20	±20	±10
Radio Frequency Power	W	2.5		1.5	1.5	1.8	2	2.5	4.5
Average optical power	W	1		5			5	5	5
Peak pulse optical power	kW	10		30			30	30	30
Diffraction Efficiency	%	75		85			85	80	80
Rise Time	ns	60		130			200	300	400
VSWR		1.5:1		1.2:1			1.2:1	1.2:1	1.4:1
Ultrasonic Velocity	m/s	4200
Input Impedance	Ω	50
Connector		SMA
Working Temperature	ºC	-20~50
Storage Temperature	ºC	-30~+70

Ordering Information
FAOM-1-2-3-4-5-6\

1-Central Wavelength	2-Center Frequency	3-Beam Size	4-Ultrasonic Working Mode	5-Handing Average Power	6-Shell Type
633-633nm	60-60Mhz	0.3-0.3mm	L-Longitudinal Wave	05-500mw	A-All glue
820-820nm	100-100Mhz	0.7-0.7mm	S-Transverse Wave	10-1W	B-Golden
1064-1064nm	120-120Mhz	1-1mm		20-2W	C-Black Oxidation
1550-1550nm	150-150Mhz	1.5-1.5mm		S-Specify	D-Mini
S-Specify	200-200Mhz	2-2mm

*Above specifications are for device without connector and may change without notice.
Company Profile
FAQ
1. Are you the real factory?
Yes, we are the real factory with about 10 years history.

2. What packaging does the product use?
With CSRayzer brand name or Neutral packaging.

3. What is your main products?
SuperMini Optical Passive Fiber Components
Superluminecend Laser Diode
Narrow linewidth laser diode
Balanced Photodetector
Avalanche Photodiode APD
Acousto-Optic Modulator (AOM)
Polarization Maintaining Optical Fiber Components
Fiber GYRO Coil and coil winding machine
High-power optic components
Free Space Faraday Isolator and Faraday Rotator
4. Product quality guarantee period?
12 month' Guarantee for Precision Equipment Machine.

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 7 days for stock products; More than 2 weeks for customized products.
If you have any specific requirements, please do not hesitate!
MENTION!!!
CSRAYZER is specialized in designing and manufacutring Optic Passive Components, widely used for Fiber Laser, Fiber Sensor, Fiber LIDAR system and solutions.
CSRAYZER offers various kinds of Optical Passive Components:
Single Mode Components
Polarization Maintaining Components
Fiber GYRO Coil and Coil Winding Machine
High Power Optic Components
Free Space Faraday Isolator / Faraday Rotator
Mini Hybrid Packaged Components
Fiber Coupled Acousto-Optic Modulator (AOM)
Special Customized Optical Passive Module
All products could be customized!
