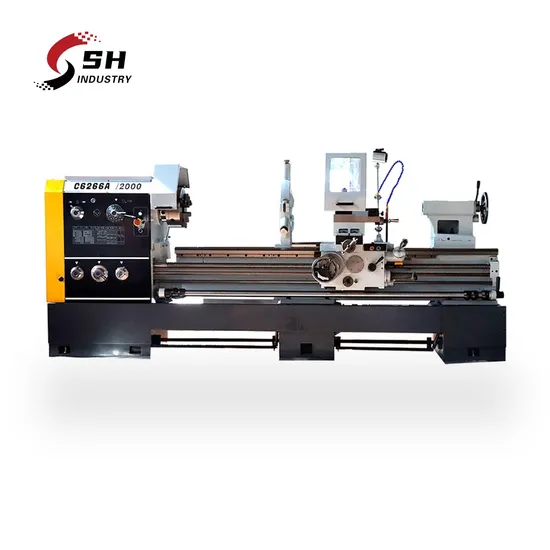

High Precision Gap Bed C6266A Horizontal Metal Lathe Machinery with CE

Product Description

Product Description
High Precision Gap Bed C6266A Horizontal Metal Lathe Machinery with CE
We are the most professional in making gap bed lathe Product Parameters
This series of lathes is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning a variety of metric, imperial, modular and diameter pitch threads, and can be carried out
Drilling and pulling oil tanks and other work.
The bed is wider than the general lathe, with high stiffness, guideway surface by high-frequency quenching, durable wear.
The machine operation is convenient and centralized, and the slide plate is equipped with a fast moving mechanism. Using a single handle visualization operation, good amenity.
The structural stiffness and transmission stiffness of the machine tool are higher than that of the general lathe, and the power utilization rate is high, which is suitable for strong cutting.
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment

SPECIFICATIONS	Specifications	Unit	C6266A	CQ6280
	Swing Over Bed	mm	660	800
	Swing Over Cross Slide	mm	440	570
	Swing in Gap	mm	900	1035
	Length of Gap	mm	250
	Distance Between Centers	mm	1500/2000/3000	1500/2000/3000
	Width of Bed	mm	400	400
	Spindle Nose		D1-8	D1-8
	Spindle Bore	mm	105	105
	Taper of Spindle Bore	mm	Φ113(1:20	Φ113(1:20
	Spindle Speed Step		16	16
	Range of Spindle Speed	rpm	25~1600	25~1600
	Compound rest travel	mm	230	230
	Cross slide travel	mm	368	420
	Max. Section of Tool	mm	25x25	25x25
	Leadscrew Pitch		12 or 2T.P.I	12 or 2T.P.I
	Longitudinal Feeds Range in Metric Lead Screw	mm/rev	0.044~1.48 (25 kinds)	0.044~1.48 (25 kinds)
	Cross Feeds Range in Metric Lead Screw	mm/rev	0.022~0.74mm/rev (25 kinds)	0.022~0.74mm/rev (25 kinds)
	Threads metric pitches	mm	0.45~120 (54 kinds)	0.45~120 (54 kinds)
	Threads imperial pitches	T.P.I	7/16~80(54 kinds)	7/16~80(54 kinds)
	Threads Diametrical pitches	DP	7/8~160(42 kinds)	7/8~160(42 kinds)
	Threads Module pitches	MP	0.25~60 (46 kinds)	0.25~60 (46 kinds)
	Tailstock quill diameter	mm	90	90
	Tailstock quill travel	mm	235	235
	Tailstock quill taper		MT5	MT5
	Main Motor Power	kw	7.5(10 HP)	7.5(10 HP)
	Coolant Pump Power	kw	0.1(1/8HP)	0.1(1/8HP)
	Overall Dimension	mm	3210/3710/4710×1230×1600	3210/3710/4710×1230×1670
	Packing Size (L×W×H)	mm	3240/3740/4740×1140×1840	3240/3740/4740×1140×1910
	Net Weight	kg	3065/3345/3710	3175/3455/3820kg
	Gross Weight	kg	3535/3835/4310	3695/4005/4495kg

Realistic photos

Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
