Product Details
Product Description
Product Description

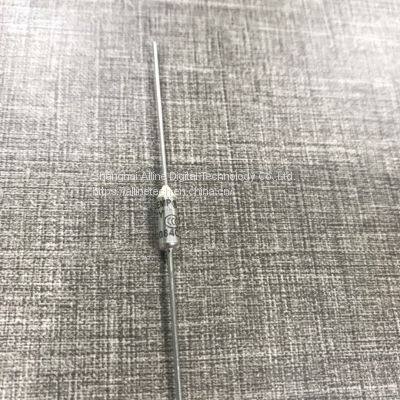

The MICROTEMP® G4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.
Standard Type: G4A00084C / G4A01084C / G4A50084C / G4A51084C
E4A00084C / E4A01084C / E4A50084C / E4A51084C
Electrical Ratings & Agency Recognition:
UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC
VDE -- 10A/250VAC
CCC -- 10A/250VAC
PSE JET -- 10A/250VAC
KC -- 10A/250VAC
Overall Length: 63.8mm(G4A00084C) / 82.9mm(G4A01084C)
Rated Functioning Temperature (Tf): 84°C
Holding Temperature (Th): 69°C
Maximum Temperature Limit (Tm): 220°C
The MICROTEMP® G5 Thermal Fuse is rated for continuous operating currents up to 20 amps @ 250VAC.
Standard Type: G5A00084C / G5A01084C / G5A50084C / G5A51084C
E5A00084C / E5A01084C / E5A50084C / E5A51084C
Electrical Ratings & Agency Recognition:
UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC
VDE -- 20A/250VAC
CCC -- 20A/250VAC
PSE JET -- 15A/250VAC
KC -- 16A/250VAC
Overall Length: 63.8mm(G5A00084C) / 82.9mm(G5A01084C)
Rated Functioning Temperature (Tf): 84°C
Holding Temperature (Th): 69°C
Maximum Temperature Limit (Tm): 220°C
The MICROTEMP® G6 Thermal Fuse is rated for continuous operating currents up to 16 amps @ 250VAC.
Standard Type: G6A00084C / G6A01084C
Electrical Ratings & Agency Recognition:
UL/CSA --16A/250VAC
VDE -- 16A/250VAC
CCC -- 16A/250VAC
PSE JET -- 15A/250VAC
Overall Length: 63.8mm(G6A00084C) / 82.9mm(G6A01084C)
Rated Functioning Temperature (Tf): 84°C
Holding Temperature (Th): 69°C
Maximum Temperature Limit (Tm): 220°C
The MICROTEMP® G7/E7 Thermal Fuse is rated for continuous operating currents up to 5 amps @ 250VAC and 5 amps @ 24VDC .
Standard Type: G7F01084C/ G7F51084C / E7F01084C / E7F51084C
Electrical Ratings & Agency Recognition:
UL/CSA -- 5A/250VAC,5A/24VDC
VDE -- 5A/250VAC
CCC -- 5A/250VAC,5A/24VDC
PSE JET -- 5A/250VAC
KC -- 5A/250VAC
Overall Length: 82.6mm
Rated Functioning Temperature (Tf): 84°C
Holding Temperature (Th): 69°C
Maximum Temperature Limit (Tm): 125°C
The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.
Standard Type: G8A00084C / G8A01084C / G8A50084C / G8A51084C
E8A00084C / E8A01084C / E8A50084C / E8A51084C
Electrical Ratings & Agency Recognition:
UL/CSA --20A/277VAC, 25A/250VAC
VDE -- 25A/250VAC
CCC -- 25A/250VAC
PSE JET -- 25A/250VAC
Overall Length: 63.8mm(G8A00084C) / 82.9mm(G8A01084C)
Rated Functioning Temperature (Tf): 84°C
Holding Temperature (Th): 69°C
Maximum Temperature Limit (Tm): 220°C
>>
