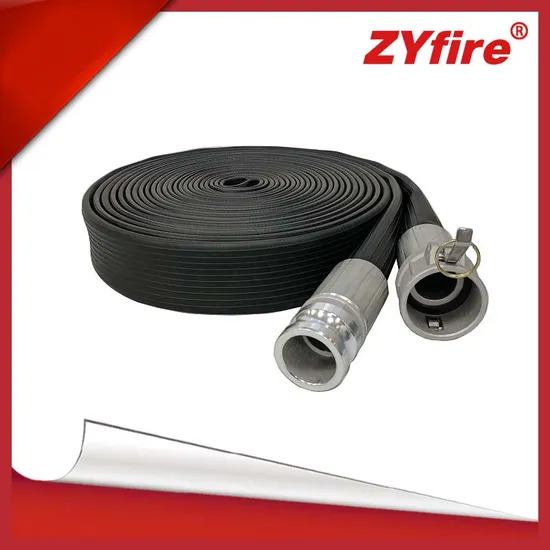

NBR Nitrile Rubber Covered Durable Attack Fire Hose with Storz BS6391 Coupling TPR/Nitrile Blend Covered Hose
Tube and cover: TPR/Nitrile Blend, Ribbed cover for maximum abrasion resistance.
Reinforcement: 100% virgin high tenacity polyester Jacket.
Application: Water discharge.
Standard Length: 15m (50ft), 20m (66ft), , 30m (100ft), 60m (200ft), 90m (300ft), 200m (660ft).
Manufacturing Technology: Three-ply technology and through-the-weave technology without delamination issues.
| ID | ID | Service Pressure | Minimum Burst Pressure |
| inch | mm | Psi/bar | Psi/bar |
| 3/4" | 19 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1" | 25 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1 1/2" | 38 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
| 2" | 50 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
| 2 1/2" | 65 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
| 3" | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 4" | 102 | 150/10, 200/14 | 450/30, 600/42 |
| 6" | 152 | 100/7, 150/10 | 300/21, 450/30 |
| 8" | 204 | 100/7, 150/10 | 300/21, 450/30 |
| 10" | 254 | 100/7, 150/10 | 300/21, 450/30 |
| 12" | 306 | 100/7, 150/10 | 300/21, 450/30 |
| 16" | 408 | 100/7, 150/10 | 300/21, 450/30 |
