Circular Wooden Sawmill Portable Sawmill for Sawing Logs Round Log Wood Multi Blade Rip Saw Machine for Timber Wood Cutting

Product Description

Portable Sawmill Round Log Wood Multi Blade Rip Saw Machine For Timber Wood Cutting Product Description
Introduction

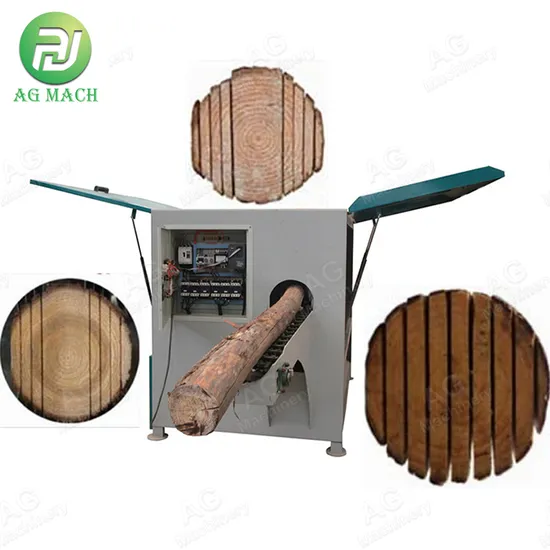

The multi rip saw is widely used for processing raw wood log.Our saw uses upper and lower saw blades for longitudinally cutting round log,which can be cut into pieces of small planks or one middle or two middles big planks and other small planks through the multi rip saw.
The automatic multi rip saw is mainly composed of mechanical automatic feeding parts, front and rear stage pushing cylinder parts, height detecting parts, automatic pressing parts, traction parts, circular saw adjusting parts and frame, PLC control system, liquid crystal touch screen, etc.
Product Parameters

Model	YM200	YM250	YM300
Sawing Log Diameter	80-200mm	120-250mm	150-300mm
Min Sawing Log Length	600mm	600mm	600mm
Blade Cooling Method	Axis Watering	Axis Watering	Axis Watering
Main Motor	22KW*2	30KW*2	37KW*2
Feeding Motor	1.5KW	1.5KW	2.2KW
Saw Blade Diameter	305mm	355mm	405mm
Weight	2000kg	2500kg	2800kg

Model	YM350	YM400	YM450
Sawing Log Diameter	200-350mm	250-400mm	300-450mm
Min Sawing Log Length	600mm	600mm	600mm
Cooling Method	Axis Watering	Axis Watering	Axis Watering
Main Motor Power	45KW*2	55KW*2	55KW*2
Feeding Motor	2.2KW	2.2KW	2.2KW
Saw Blade Diameter	480mm	520mm	600mm
Weight	3200kg	3500kg	3800kg

Detailed Photos
Axles Center Water Cooling System Variable Frequency Speed Adjustable Feeding
Related Products
Plank Cutting Multi Rip Saw/Multi Rip Saw for Square Wood

Model	SH120-250	SH160-250	SH160-350	SH200-350
Max. Sawing width	250mm	250mm	350mm	350mm
Max. sawing thickness	120mm	160mm	160mm	200mm
Min Sawing length	500mm	500mm	500mm	500mm
Spindle Speed	2800 r/min	2800 r/min	2800 r/min	2800 r/min
Motor	15KW*2	18.5KW*2	22KW*2	22KW*2
Feed Motor	1.5KW	1.5KW	2.2KW	2.2KW
Saw Blade Diameter	212mm	255mm	255mm	305mm
Saw Blade Quantity	2-10 pieces	2-10 pieces	2-10 pieces	2-10 pieces
Cooling Water Pressure	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA

Auto Wood Multi Rip Saw Production Line
1 - Log Slope Conveyor
2 - Log Cutting Multi Rip Saw
3.4.5 - Plank Cutting Multi Rip Saw
6.7 - Conveyor
The production line will increase wood processing speed and only need 3-5 workers for more economic profit.
The max sawing log diameter is 350-450mm.
We can design the production line according to the diameter of your logs.
Packaging & Shipping

---
