4-20mA voltage output 80mm height min size Piezoresistive pressure sensor Hirschmann connector cable outlet transmitter

Product Description

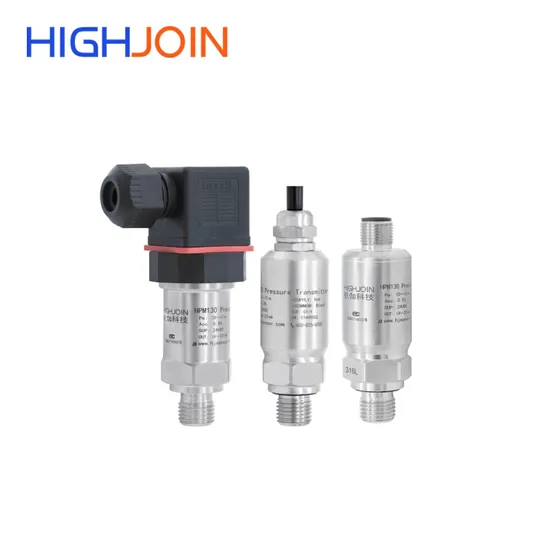

HPM130 Compact Pressure Transmitter adopts advanced technology ,ingenious structure design, with miniaturized imported transmitter and precise digital signal. It can be used in narrow confines to meet the need of development of equipment miniaturization and guarantee the high performance of the product.
Product Parameters

Measuring Medium	Clean, dry gas compatible with 304, 316L
Measuring Range	-100kPa…0~10kPa…60MPa (Gauge)
Overload	1.5 times pressure range of full scale
Pressure Type	Gauge pressure, absolute pressure, or sealed gauge pressure
Accuracy	±0.5%FS (typical) ±0.25%FS (optional)
Long-term Stability	≤0.2%FS/year
Temperature Coefficient of Zero	±0.03%FS/ºC(Reference 25ºC)
Temperature Coefficient of Full Scale	±0.03%FS/ºC(Reference 25ºC)
Output Signal	4~20mADC (two wires) or 1~5VDC,0~10VDC,0.5~4.5VDC (three wires)
Power Supply	5VDC, 12VDC or 24VDC
Compensation Temperature Range	-10~70ºC
Operation Temperature	-40~120ºC
Storage Temperature	-40~120ºC
Protection Grade	IP65
Insulation resistance	100MΩ @500VDC
Electrical Connection	DIN43650 or cable outlet with dedicated shield cable

Dimension (Unit:mm)

Cable Outlet	DIN43650	M12x1

Electrical connection

2 wire 4~20mA output	3 wire voltage output

Other Recommendations

HPM1300(click) Measuring pressure upto 40MPa(Gauge pressure)			HPM1301(click) Measuring pressure upto 40MPa(Gauge pressure)
50mm body height	48mm body height	80mm body height	37mm body height	29mm body height

HPM1302 (Slimmer type! 20mm diameter) Measuring pressure upto 40MPa		HPM133(click) Measuring pressure upto 50bar. Ceramic sensor, no sealing ring, no leak risk, anti water hammer
46mm body height	44mm body height	52mm(circular connector) to 93mm(DIN43650 connector) body height

Company Profile
FAQ 1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
4. Q: What is lead time of your product? A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
5. Q: Do you provide customized products? A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
6. Q: What is your MOQ? A: We have no MOQ limit, small quantity order is acceptable.
7. Q: What's the transport? A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.

---
