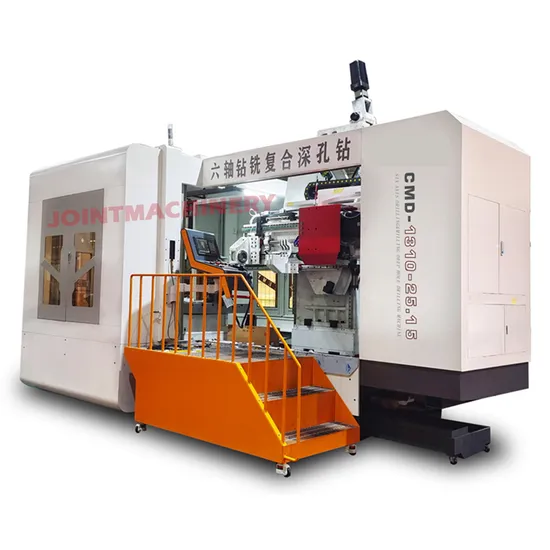

6-Axis CNC Gun Drilling and Milling Machine for Deep Hole Metal Molds Cmd-1310-35.20

Product Description

Drilling, an essential process in machining operations, finds extensive application across numerous fields. Traditional drilling equipment like bench drills, milling machines, and radial drills often limit laborers to repetitive tasks, potentially compromising quality. The advent of the CNC era revolutionized this dynamic. CNC deep hole drills now liberate operators from manual constraints, solving deep drilling challenges and achieving quality standards previously unattainable with conventional machines. These advanced CNC systems enable simultaneous drilling, enlarging, expanding, and facilitate automatic chip extraction, precise CNC positioning, and automated processing, dramatically enhancing efficiency and safety in manufacturing environments.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The CMD series, an ingeniously designed six-axis drilling and milling composite machine tool, epitomizes multifunctionality and precision. It excels in deep hole processing and milling, equipped with a rotational workbench and a versatile swinging A-axis for precise machining of complex parts featuring inclined and double-inclined holes or surfaces. Its application spans multiple sectors, fulfilling diverse engineering needs with unparalleled efficiency and accuracy.
Our state-of-the-art machinery is pivotal in various industries, including automotive mold manufacturing, engine cylinder blocks, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering. It is especially adept at handling challenging parts like inclined top rods on molds, double-inclined water paths in hot forming molds, hot runner plates, engine cylinders, rolling rollers, rotary tables, and flywheels, ensuring impeccable quality and performance.
1.Complete control and servo systems powered by FANUC, Japan, ensuring top-tier performance and reliability.
2. Dual closed-loop design for A and B axes, ensuring precise composite angle achievement.
3. Integrates deep hole drilling and milling functions, with optional single pipe drilling capabilities.
4. Offers a substantial A-axis swing angle, broadening the processing range and versatility.
5. Fan-shaped disc-shaped hard rail design, guaranteeing robust and reliable A-axis positioning.
6. Anti-deviation load rotating workbench for precise and stable operations.
7. Heavy-duty pre-pressed roller precision wire rail and large-diameter grinding-grade screw rod for superior precision.
8. Dual-cycle precision filtration system paired with a high-pressure cooling chip removal system for optimal performance.
9. A newly designed fully enclosed cover, combining aesthetic appeal with cutting-edge technology.
10. Optimized body design boasting strong rigidity, exceptional stability, and excellent seismic resistance.
6-Axis CNC Gun Drilling and Milling Machine for Deep Hole Metal Molds CMD-1310-35.20

Model	Unit	CMD-1310-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-40
Drilling diameter of single pipe drill	mm	/
Max drilling depth of gun drill (W)	mm	1000
Machining Stroke
Left and right of workbench (X)	mm	1300
Sliding table stroke (Y)	mm	1000
Column stroke (Z)	mm	600
Max drilling depth of gun drill (W)	mm	1000
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	5000
Size (L*W)	mm	1200*1000
Spindle
Spindle taper capacity		BT40
Max spindle speed	rpm/min	6000
Power
Spindle motor	kw	11
X-axis feed servo motor	N.m	27
Y-axis feed servo motor	N.m	27
Z-axis feed servo motor	N.m	27
W-axis feed servo motor	N.m	20
A-axis feed servo motor	N.m	20
B-axis feed servo motor	N.m	20
Total power	kw	45
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	7500*5500*4200
Machine weight (About)	kg	16000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1000+500

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of innovation and quality in the CNC machinery industry. Specializing in a diverse array of machines including CNC lathes, deep hole drilling machines, and Swiss-type automatic lathes, we are dedicated to delivering high-quality products and exceptional service worldwide. Our commitment to quality control ensures our machines meet the highest industry standards, integrating core technologies from Taiwan and Germany. Our advanced production equipment and processes guarantee superior product quality, renowned for precision, stability, and reliability. Serving markets across Asia, Europe, South America, North America, and beyond, our products enjoy global recognition and popularity. Our enduring partnerships with international clients underscore our capability to create significant business value and foster mutually beneficial growth.

---
