Eco-Friendly 25kVA-1000kVA Natural Gas Generator for Sustainable Energy Solutions

Product Description

Product Description Gas Treatment Device
1,Filtering device, storage can (normally the customer should already have when they doing the treatment engineering)
2,Desulfurize device
Requirement to the gas
1,The gas should not have dissociative water or other dissociative substance.
2,Gas thermal value ≥5000kcal/l, if the gas is low thermal value (thermal value<5000kcal/l), then the gas gen sets power shall go dowm.
3,Sulfur content should less than or equal to 250mg/m³. if gas contents more sulfur, should get rid off sulfur content.
Note: If sulfur content is too high, it will seriously damage the engine parts.

Product Parameters

Model	Voltage (V)	Frequency(Hz)	Power(kW)	Speed (r/min)	Dimension(mm)	Weight (kg)
AP4DG-30N5LC	400	50	30	1500	1900×720×920	1000
AP4DG-50N5LC	400	50	50	1500	1900×720×920	1020
AP4GG-60N5LC	400	50	60	1500	1900×720×930	1100
AP6GG-80N5LC	400	50	80	1500	2400×980×1450	1200
AP6GG-100N5LC	400	50	100	1500	2400×980×1450	1250
AP6MKG-150N5LC	400	50	150	1500	2900×1030×1780	2500
AP6MKG-180N5LC	400	50	180	1500	2900×1030×1780	2500
AP6KG-200N5LC	400	50	200	1500	3100×1300×1780	3200
AP6KG-250N5LC	400	50	250	1500	3100×1300×1780	3200
AP6TG-300N5LC	400	50	300	1500	3200×1400×1800	3800
AP6TDG-350N5LC	400	50	350	1500	3270×1850×2150	5500
AP6TFG-500N5LC	400	50	500	1500	3600×1500×2100	7400
AP6CG-500N5LC	400	50	500	1500	4110×1633×2110	8890
AP6CG-600N5LC	400	50	600	1500	4110×1630×2110	8890
AP12VTDG-700N5LC	400	50	700	1500	3850×1950×2370	8490
AP12VTDG-700N5HC	10500	50	700	1500	4415×2000×2370	9735
AP12VTDG-800N5LC	400	50	800	1500	3850×1950×2370	8490
AP12VTDG-800N5HC	10500	50	800	1500	4415×2000×2370	9735
AP12VCG-1000N5LC	400	50	1000	1000	5190×2110×2660	16000
AP12VCG-1000N5HC	10500	50	1000	1000	5480×2110×2690	17000
AP16VTDG-1100N5LC	400	50	1100	1500	4620×1990×2280	11700
AP16VTDG-1100N5HC	10500	50	1100	1500	5480×1990×2280	13750
AP16VCG-1500N5LC	400	50	1500	1000	6030×2090×2745	22500
AP16VCG-1500N5HC	10500	50	1500	1000	6030×2090×2645	22610
AP16VCG-2000N5LC	400	50	2000	1500	8420×2055×2890	24800
AP16VCG-2000N5HC	10500	50	2000	1500	8835×2055×2890	25500

Rated Power(kVA)		25
Rated Voltage(V)		400
Rated Current(A)		36
Rated Freq(Hz)		50
Power Factor cosφ		0.8
Overall Size(LxWxH)		2050*950*1750
Net Weight (kg)		1200
Gross weight (kg)		1250
Gas Engine Model		HG4B
		in line, four strokes, electric control ignition, electric starting, force water cooling, electric governor and intellectualized protection
mm Bore		102
mm Stroke		120
Cylinder Numbers		4
L Displacement		3.9
kW Rated Power		33
r/min Rated Speed		1500
Compression Rated		11.5:1
Start Method		Machienry starting
Firing Order		1-5-3-6-2-4
Cooling Method		open water cooling
Lubrication method		Pressure lubrication
0C Working temperature		circulating water 40-85ºC lubricating oil <95ºC exhaust<650ºC
Fuel		Natural gas
oil		using Great Wall special oil or 15W/40L-ECD
Generator Manufacturer	Stamforrd
Engine Model	PI144E
Main Technical Data	35 Rated Power 50 Rated Freq 1500 Rated Speed 400/230 Rated Volt age 0.8 Rated Factor cosφ Excitation Mooted : Brush less Phases and connecting method: three phases four lines system Self-excited alternator,automatism voltage regulation automatism heat driving off, single bearing generator Insulation class H Protection class:IP23 Voltage range of genset:±10% Steady voltage Regulation:≤±1% Transient voltage regulation:≤(-1.5-+20)% Voltage stabilization ≤1S Voltage fluctuation ratio ≤0.5% Steady Frequency Regulation:≤±1% Frequency stabilization ≤3S Frequency fluctuation ratio ≤0.5%

Control Panel & ATS

Manufacturer of control panel	Smartgen brand HGM6120U
Main function	1.132*64 LCD display with backlight, optional language interface (Chinese, English, Spanish and Russian), push-button operation; 2.Acrylic screen, improved wearable and scratch resistance property; 3.Silica-gel panel and keys can well adapt to higher and lower temperature; 4.With RS485 communication port, can achieve "three remote" functions via MODBUS protocol; 5.Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system; 6.Can measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens; 7.Mains have functions of over/under voltage and lack of phase; Gens have functions of over/under voltage, over/under frequency and over current; 8.Precision measure and display of parameters about engine, 9.Control protection: Automatic start/stop of genset, load transfer(ATS control) and perfect failure display and protection; 10.With ETS, idle speed control, pre-heat control, speed droop/raising control, all of them are relay output; 11.Parameter setting: Allow user to modify setting and store them in internal FLASH memory. The parameters cannot be lost even when power off. All of parameters can be set not only from the front panel, but also use programmable interface (or PS485 interface) to adjust them via PC.; 12.Multi sensors of temperature, pressure and fuel level can be used directly, parameters can be defined by user; 13.Multi conditions of crank disconnect (speed sensor, oil pressure, generator) can be selected; 14.Power supply range: (8~35)VDC, accommodating to different starting battery volts; 15.All parameters use digital modulation, instead of analog modulation using conventional potentiometer, having improved reliability and stability; 16.Add rubber gasket between shell and controller screen, the waterproof can reach IP55; 17.Controller is fixed by metal fixing clips; 18.Modular design, flame-retardant ABS shell, embedded mounting, compact structure and easy installation.
ATS	Chinese brand together with generator

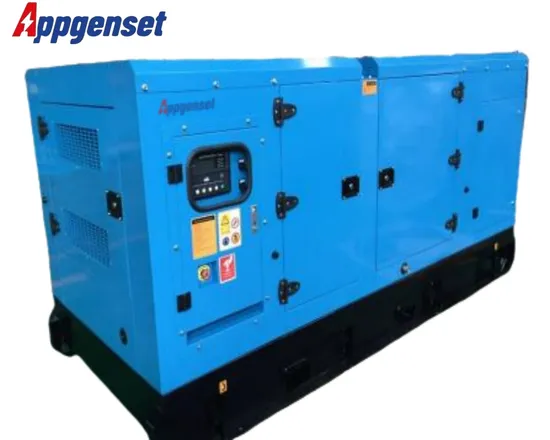

Detailed Photos
Packaging & Shipping
Our Advantages The advantages of our single fuel gas gen sets products produced by our company comparing with other company's products within the same area:
1,Use advanced Hall Effect Sensor and high energy ignition system to make the ignition reliable and staring more easy.
2,Use electric governor of American technology and gas regulating system of British technology to make the gen sets operating more reliable.
3,Gen sets can achieve multi sets running in parallel and combine in web, to improve total capacity and easy for gen sets to check and maintenance each time. So it will no influence the production of the customer.
4,Because the engine rated power is low, it can make the engine running more reliable.
5,The spare parts of gen sets mostly can be common used with the original diesel engine and easy for maintenance. The spark plug's price only is2usd /piece and the using cost is low.
6,There is good economic performance and running cost is low.
7,Because using gas fuel, reduce accumulated carbon, so can reduce wear and tear of the cylinder liner and gas valve seats. This can extend the life of the gen sets.
8,Using high function control panel, can achieve multi protection and make gen sets running more safe.
