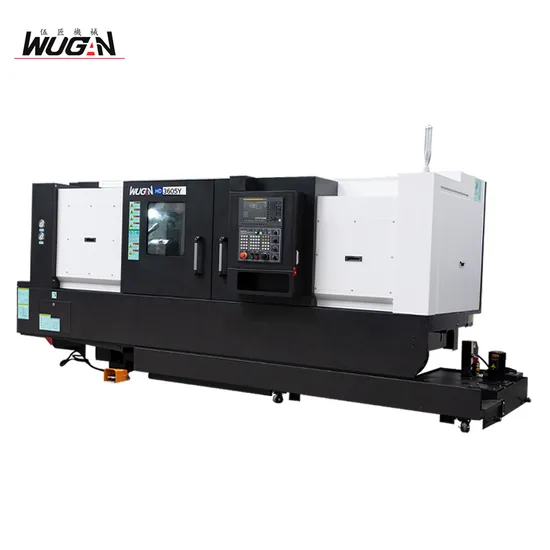

HD3605y Cheap CNC Non-Conventional Milling Machining Drilling Machine with Excellent Cutting Function-Machining Plate Duplex Milling Metal Surface Processing

Product Description

Cheap CNC Non-Conventional Milling Machining Drilling Machine with Excellent Cutting Function-Machining Plate Duplex Milling Metal Surface Processing For Sale
-Box guideways of heavy duty cutting
-30 slanted one-piece bed structure for high rigidity
-Stabilized Unit Structure to minimize thermal displacement
-Integrated processing through synchronized control of Main/Sub spindle(SY Type)
--Multi-tasking operation with wedge type Y-axis BMT turret
Excellent rapid traverse rate:30m/min(Z-axis)
-Ergonomic design for convenient access to chuck and tool

ITEM			UNIT	HD3605Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	1280
	Bar Capacity	Main	mm	119
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	12"
		Sub	inch	-
	Spindle Bore	Main	mm	91
		Sub	mm	-
	Spindle Speed	Main	r/min	2,500
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	543/440
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-11
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	265/120{±60}
		Z/ZB	mm	1350
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	40
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	4.5
	Torque(Max/Cont.)		N·M	76
	Collet Size		mm	∅20{ER32)
	Type		-	BMT65P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	1350
TANK CAPACITY	Coolant Tank		ℓ(gal)	225
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	4,195x1,978
	Height		mm	1,857
	Weight		kg(lb)	7,400
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
Structural analysis was applied to the design of the machine to increase the tool post body and reduce the machine's height so as to maintanin the bed's dynamic rigidity even during heavy-duty cutting.
In addition,the HD-SY Series bed slope is pitched at 30 degrees to ensure more stable machining.
Integrated Coolant Tank
The structure is designed with the coolant tank installed at the bed front for improved convenience.Chips can be removed from the right side of the machine.
Box Guideway
All axes of HD-SY Series are designed with Box guideways for better travel ability.Box guideways show great performance in offsetting vibrations caused by heavy duty cutting.
Sealed GIB Structure
X-axis of HD Series is designed to minimize the damage of turcite from chips by applying the sealed GIB structure.
Rapid Traverse Rate(X/Y/Z/ZB)
HD 3605Y/SY 24/10/30/24 m/min
Travel (X/Y/Z/ZB)
HD 3605Y/SY 265/120/1350/1350 mm
Mill Turret
The BMT turret secures the tool with four bolts and key on the tool mounting surface of the turret,making it possible to powerfully fix the tool,ensuring high reliability in rigidity and peicision.

Mill Tool Holder
Machining capability has increased with the addition of straight milling head tool holder,which can machine workpieces from the side,and angular milling head tool holder,which can perform I.D. operations.
BMT 65P(HD3605Y/SY)
Speed(rpm):4000 r/min
Collet size:ø20(ER32)
Indexing time:0.2 sec/step
Suzhou Wugan Intelligent Equipment Co., Ltd. Specialises in the production of high-performance CNC lathes and high-performance CNC turning centres, which are designed on the basis of the latest international lathe technology. Based on the latest international lathe cutting-edge technology as the basis of design, combined with high rigidity, high precision, high productivity and exquisite appearance and other characteristics, to provide customers with efficient and reliable cutting performance. In order to meet the higher requirements of customers, the company also has a high-performance mill-turn combined model available for use, which can be turned, milled and drilled in the same machine, and other combined processing functions, which not only increases the output capacity of the product, but also makes this series of lathes can easily meet the various processing needs of different customers.

---
