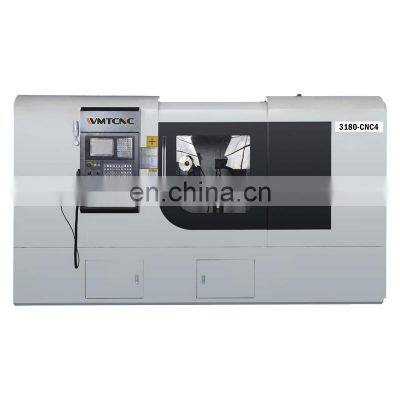

Product DescriptionProperties and pecularities1. The numerical control system uses Kaneti system, Guangshu system, Siemens.2. This machine tool batch and small batch to produce spur gear and cylindrical gear Helical gear, drum gear, worm gear, sprocket and synchronous belt wheel etcGear machining.3. Can be customized according to user's needs.Type of Machine3150E-CNC4Max. Working Diameter500mmMax. Working ModuleM8Max. Working Width250mmMax. Installation Length of Work Piece300mmMin. Number of Teeth Processed6Max. Diameter of Hob160mmLength of Channeling Knife of Hob50mmSpindle Diameter of Hobφ27mmSpindle of Main Shaft of Hob700r/minMax. Rev of Operation Platform21.2r/minZ Axle Quick Movement4000mm/minX Axle Quick Movement4000mm/minDistance Between Core of Hob to Core of Operation Platform45-330mmSwivel Angle of Cutter Frame±45°Total Capacity of Motor About30kwExternal Dimension of Machine(L×W×H）3060×2060×2220mmWeight of Machine Circa8000KGDetailed ImagesApplicationCompany ProfileProfessional ServiceCustomers' FeedbackFAQQ1: How is the warranty? A1: Warranty time is 13 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What’s the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.
Company Profile
Jingjiang Fuji Technology Co., Ltd.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
