US$9,800.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Y, YR, YKK, YRKK, YKS,
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Protection Type
Starting Mode
Dol/Soft Starter/VFD or Customized
Certification
ISO9001, CCC, CE
Transport Package
Customized Packaging
Specification
248.00cm * 160.00cm * 175.00cm
Production Capacity
200000 Set/Sets Per Year
Product Description

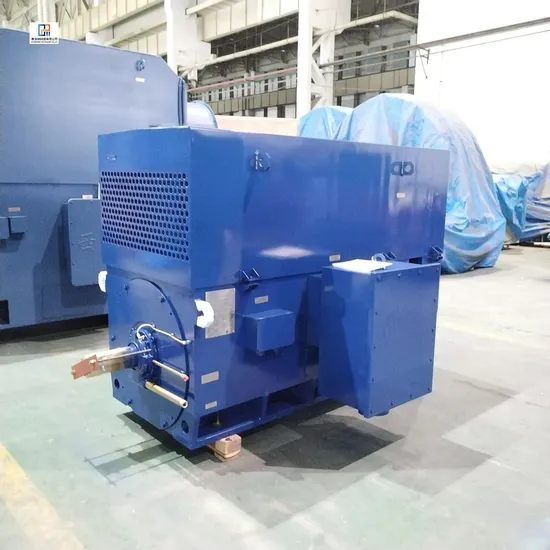

Customized 6.6KV 1250kW High Voltage Motor AC Electric Motor ABB Three-phase Asynchronous Motor
Products Brief Introduce The high voltage hot sale submersible electric motor, 6kv and 10kv voltage or on request, are used for windlass, press machines, drawing machines, etc. It has good features: strong power, perfect performance, low noise, slight vibration, reliable running, good appearance, small volume light weight and easy maintenance.
Some Technical Data please check the follows, if you need more, kindly contact us!
Basic Data
|
No.
| Brand Name:
| Copartner
|
1
| Model Number:
| YX, YXKK, YKS
|
2
| Type:
| Induction Motor
|
3
| Structure:
| Asynchronous Motor
|
4
| Place of Origin:
| Hebei, China (mainland)
|
5
| Insulation Class:
| Class B/F/H
|
6
| Frequency:
| 50HZ
|
7
| Efficiency:
| IE2 & IE3
|
8
| Output Power:
| 185KW-5000KW
|
9
| Phase:
| Three Phase
|
10
| Pole:
| 2P, 4P, 6P, 8P, 10P, 12P
|
11
| Wire:
| 100% copper
|
12
| Protection Class:
| IP44/IP54
|
13
| Cooling Method:
| IC411,IC416,IC01,IC611, IC616, IC666
|
14
| Duty:
| S1 (continuous)
|
15
| Certification:
| ISO, SABS, CE
|
16
| Protect Feature:
| Totally Enclosed
|
17
| AC Voltage:
| 3300V, 6000V, 6600V, 10000V or on request
|
18
| Ambient temperature:
| -15°C≤0≤40°C
|
19
| Altitude:
| Not exceed 1000m
|
20
| Mounting Type:
| B3, B5, B35, etc
|
21
| Standard:
| Confirm to IEC international standard
|
22
| Installation:
| we will send detailed instructions together with the Motors
|
23
| Packaging Details:
| Packed with export requirement protect the motors and convenient for transport.
|
24
| Delivery Details:
| 25-30 Days
|
>>
