Universal Swivel Head Milling Machine Xq6232 China Milling Machine

Product Description

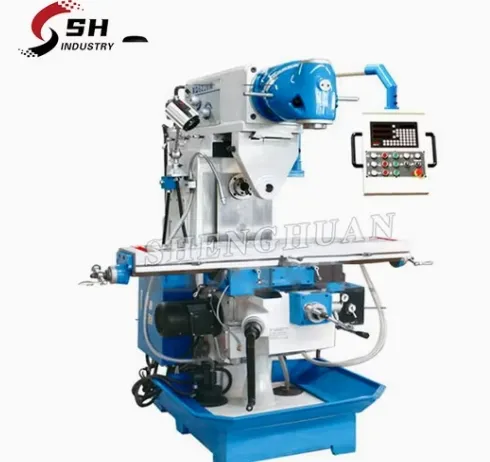

Universal Swivel Head Milling Machine XQ6232 China Milling Machine
Product Description
Features:
1.Hardened guideway
2.X.Y axis auto feeding, Z axis motorized lift
3.Mill head swivel ±360 degree with high performance
4.Table swivel 45 degree
Main technical specifications:

Specifications	XQ6232
Spindle taper	ISO40
Max horizontal milling dia.(mm)	100
Max vertical milling dia.(mm)	28
Table size	1250*320
Table travel	600*340
Motor(kw)	3 (V/H)
Distance from spindle nose to table surface(mm)	100-500
spindle speed range (r.p.m)	35-1600(V) 40-1300 (12)(h)
Package size(mm)	1520×1630×2200
N.W/G.W (kg)	1550/1700

Detailed Photos

Company Profile



Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
