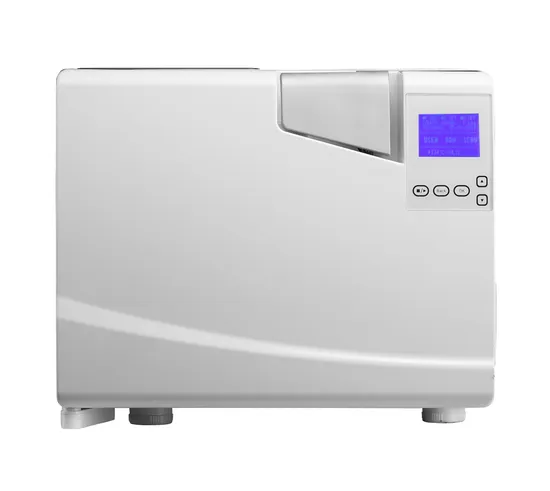

8L Class B Tabletop Steam Autoclave for Sterilization with LCD

Product Description

YESON Autoclave PRO Series 8L,Class B
A sterilizer NOT to annoy the dental doctors.
FEATURES:
1) Fast reprocessing speed
Top performance of Class B sterilization cycle incl drying is 20min. 2) Compact Can be used in small disinfection-room space. 3) Built-in Printer Not occupy space.
4) Compliance with European standards completely
5) Distinctive design of water tanks Independent hidden waste water tank prevent cross infection.Open-top fresh water tank, easy water filling and cleaning.
6) Electronic + Mechanical locker system
7) Short circuit safety protection
8) Water quality detection (optional)
TECHNICAL DATA

Power supply	230V/50Hz/1500W
Clean water tank	2.5L
Waste water tank	2.0L
Chamber size	ø170X320mm
Capacity	8L
Product size(Width*Depth*Height)	436X629X355mm
Net weight	45Kg
Gross weight	55Kg
Installation size	600mm
Material of chamber	Stainless steel 304

Parameters of the sterilizer

Process	Vacuum times	sterilizing time	Sterilizing temperature	Sterilizing pressure	Vacuum persist time	Dry time
121ºC/SOLID	1 *	20min *	121ºC	110kPa		3 *
121ºC/POROUS	3 *	20min *	121ºC	110kPa		7 *
121ºC/HOLLOW	3 *	20min *	121ºC	110kPa		10 *
134ºC/SOLID	1 *	4min *	134ºC	210kPa		3 *
134ºC/PROOUS	3 *	4min *	134ºC	210kPa		7 *
134ºC/HOLLOW	3 *	4min *	134ºC	210kPa		10 *
USER DEFINED	3 *	5min *	134ºC*	210kPa		10 *
B-D TEST	3	4min	134ºC	210kPa		7
VACUUM TEST				-80kPa	15min
CLEAN PROCESS	3	5min	105ºC	20kPa		10
PRIONEN	3	19min	135ºC	210kPa		10

The data have "*" can be adjusted
ABOUT YESON NINGBO HAISHU YESON MEDICAL DEVICE CO., LTD is a high-tech company, who is engaged in the R&D, production and marketing of products of medical sterilization chain since 2005. We are aiming at being a world-class sterilization solutions supplier and committed to creating efficient disinfection space for users.
2005 66 86 YESON FOUNDED PATENTS CERTIFICATES
Our products include tabletop autoclaves from 3L to 45L, handpiece lubricating machine, fast-cutting pouch sealer, ultrasonic cleaner, etc.Relying on our strong technology , we update and develop new products every year. Our products are well sold over 80 countries all around the world till now. In 2021, our steam autoclave sale volume ranked No 1 in Chinese autoclave industry.
We have ISO13485 and CE certificates approved. In September 2021, Yeson is the main drafter,the "ZHEJIANG MADE" institution standard <Micro Tabletop Type B Steam Sterilizers> was published officially. In June 2022, the first in the industry, we acquired the "ZHEJIANG MADE" certificate.

---
