2 Inch PVC Water Supply Pipe Extrusion Production Line

Product Description

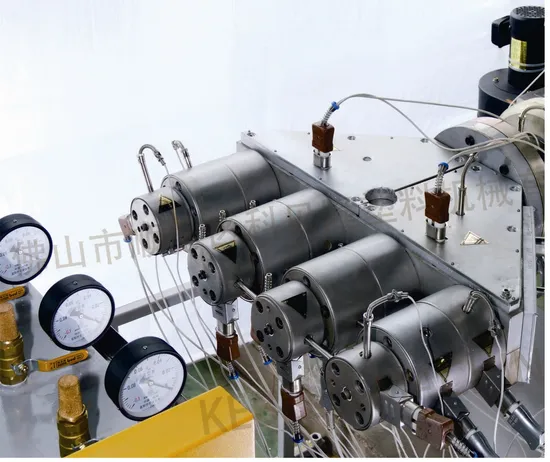

PVC four pipes extrusion plant can produce four pieces of PVC pipe by one mould. It has 70% higher capacity than the common extrusion plant.
Production pipe range: 16-32mm
Total installation power: 80kw
Production capacity: 70% higher than common PVC two pipe extrusion plant.

screw diameter(mm)	65/132
quality of screw(pcs)	2
screw direction	opposite outward rotation
speed of screw rotation(r/min)	1-36
effective length of screw(mm)	1430
structure of screw	conical mesh
motor power(kw)	37
total power(kw)	100
max. capacity(kg/h)	250-300
quantity of barrel heating(pcs)	4
heating method	cast aleminum heating+ceramic heating
center height(mm)	1000
weight(kg)	3200
dimension(L*W*H)(mm)	4500*1500*2400

Kebeln Plastic Machinery Co., Ltd is one of the leading manufacturers of plastic extrusion machines for pipes, profiles, sheets extrusion. It established in 2005. As one of the top China leading manufactures, the annual production of Kebeln is up to 1000 units. We supply various kinds of extrusion lines equipped with different capacity from 1KG to 1500KG of extruders with Chinese/English PLC automatic control system according to customers' requirement.
Kebeln is located in Shunde District, Foshan City, Guangdong Province. It covers an area of over 15000 square meters with over 10 million investment of fixed assets and the excellent equipments. Kebeln is committed to provide the first-class service for the customers from all over the world, and only the superior technology quality and the competitive price. The products from Kebeln are popular in the market. The excellent service of Kebeln obtain the good reputation in extrusion field. Kebeln has been approved by ISO9001: 2000 International Quality Certification.

---
