Economic Double Column CNC Machining Center Xh1613 Small Gantry Type Machining Center Graphite Milling Cutting Machine Tools

Product Description

Product Description
Products Description:

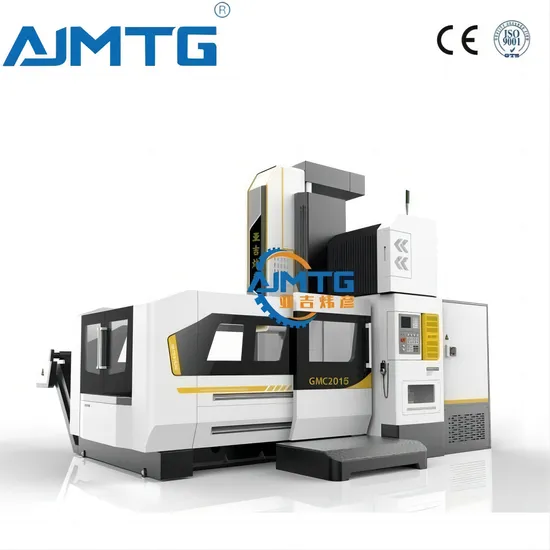

Economic double column CNC machining center XH1613 small gantry type machining center
Main configuration & accessories:
The machine tool has the characteristics of high precision, high efficiency, and environmental protection, which is especially suitable for multi-variety batch precision processing. Its performance indicators and accuracy indicators are fully in line with national standards. The products are modularized and can be serialized and customized according to market needs. Its good performance-price ratio is the best choice for domestic and foreign customers.
The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, three-coordinate linkage, etc. Mainly carry out numerical control processing of various basic large parts, plate parts, disc parts, shell parts, molds and other precision parts. It is suitable for aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
The fixed beam type gantry frame structure is adopted, the bed is fixed, and the double columns are bolted to the two sides of the bed. The worktable moves on the X axis on the bed, the spindle box moves in the Z direction on the saddle, and the slide saddle and the spindle box move in the Y direction on the beam.
The main large parts of the machine tool: bed, worktable, column, beam, saddle, and headstock are all made of high-strength cast iron and resin sand. These large parts are optimized by three-dimensional computer software. The layout of the ribs is reasonable and has perfect The heat treatment process is used to eliminate residual stress and ensure that the whole machine has sufficient strength, rigidity and high stability.
Technical parameter:

Item	Unit	XH1613
X axis travel	mm	1600
Y axis travel	mm	1300
Z axis travel	mm	650
Spindle nose to worktable	mm	130-780
Distance between two column	mm	1400
Leadscrew diameter	mm	50/45/45
Linear guideway width	mm	45/45/Rectangle
Worktable Length	mm	1600
Worktable width	mm	1300
T slot qty-width*distance	mm	7-22*170
Max loading capacity	Ton	2
Spindle speed	rpm	8000/belt
Spindle motor power	kw	15
Fast moving speed	m/min	20/20/10
Cutting speed	mm/min	1-10000
Spindle taper		BT50
Feed motor power	kw	5/5/5
X/Y/Z axsis motor torque	Nm	30/30/30
Tool Magazine Capacity	pcs	Disc/24
Positioning accuracy	mm	0.016/0.015/0.015
Repeat accuracy	mm	0.012/0.010/0.010
Length	mm	3600
Width	mm	2600
Height	mm	3000
Weight	kg	13000

Standard Accessories:
Fanuc 0i-MF(5) control system
Spindle speed 8000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
Tools and tool box
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Spindle oil cooler
CTS 20bar
CTS 30bar
Reneshaw tool probe TS27R
Reneshaw workpiece measurement device OMP60
ZF gearbox
Gear head
Manual angle head
Auto angle head
Chain type ATC 32 tools
Chain type ATC 40 tools
HEIDENHAIN scales/1m
4TH Axis rotary table 255mm+tail stock+hydraulic station
5TH Axis rotary table 255mm+hydraulic station
Exported machine
