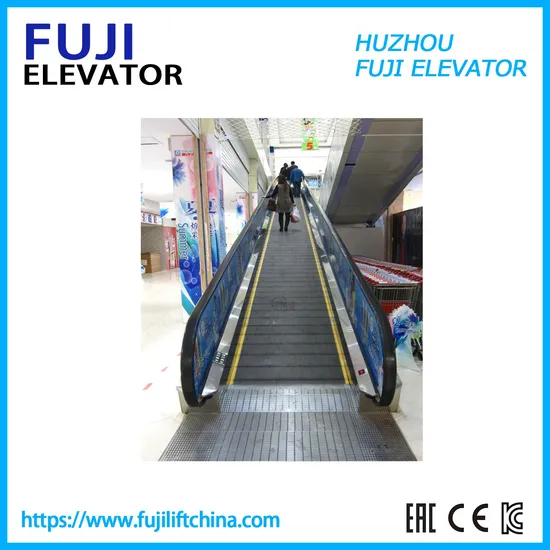

Airport with Monarch Syatem Indoor Public Moving Walk Escalator for Shopping Mall

Product Description

Escalator
It travels as easily as walking on firm earth by concise and pragmatic charm
It is widely applicable for various concentrated passengerflow areas such as big shopping centers,aviation ports,shopping malls,recreation centers,public facilities etc.
Compact,flexible and relaxing structure
The moving walk size has been reduced due to the compact design of guiderail pre-mounting technology.mechanical system and handrail drive system of FUJI moving walk.it thus effectively utilizes the building space

Installation Environment:	Indoor and Outdoor
Layout	According to Construction plans
Travel Height	H≤20000mm
Step width (mm)	600, 800, 1000, 1200
Up-down horizontal step	2/2(35°) , 3/3(30°)
Angle of inclination	35°, 30°
Operating speed	0.5m/s,1.0m/s
Start method	VVVF , VVVF+Autostart
Step	Stainless steel, Aluminum (standard for outdoor)
Color	Natural color, Black
Capacity (persons/h)	4500, 6700, 9000
Step cordon	Yellow paint
Driver Traction machine	Worm And Gear
Motor protection level	IP 21, IP54
Power Supply	Motor Power: 380V±7%, 50Hz Three Phase Five Wire System Lighting Power: 220V, 50Hz, Single Phase
Truss	Angle
Installation length	Standard
Truss process	Paint process(colour TK005),Hot-dip Galvanizing

Use of safety hairbrush for escalators:
used in major markets, shopping malls or subway entrances, installed on both sides of the lower part of the escalator, to prevent potential safety hazards caused by tying objects or shoelaces between the escalator steps and the side panels of the skirt.
Escalator clamping device:
1. Increase the position of the safety brush in conformity with the requirements of national standards and other positions such as steps
2. The bending is treated as same as the radian of the side board. And ensure that the distance with the steps meet the requirements of national standards
3. Gently process the ends of each brush. Add brush stop
4. Ensure sufficient strength during installation, and the total length of the brush top and the side board of escalator meets the standards
5. The base of the brush and the brush shall meet the standard inclination

---
