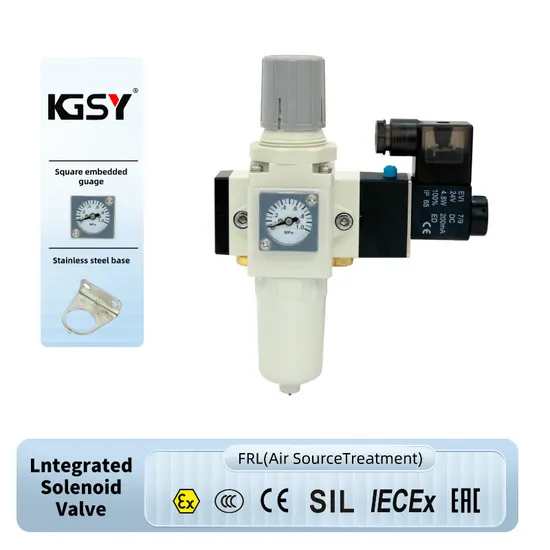

Aw2000-02 Series Lntegrated Solenoid Valve Regulator Pneumatic Filter Regulator Lubricator Air Source Treatment Unit

Product Description

Product Description AW2000-02 series Lntegrated solenoid valve Regulator Pneumatic Filter Regulator Lubricator Air Source Treatment Unit 1.This filter regulator is adopted of Aluminum alloy die - casting, stable performance, durable
2.PC capacity cup, high strength, high temperature resistance, not easy aging, good seaing performance
3.Exquisite design, transparent observation cover, easy to observe the situation in the cup
4.Easy to use, simply operate the pressure regulating valve, pull up to unlock, rotary adjust pressure
5.The reasonable product desian is easy to use and small in horizontal space, which can meet the different reguirements ofpneumatic system.

Model		AW2000-02 series
Material	Housing	Aluminum alloy
Material	Bowl	Aluminum alloy
Material	Sealing	NBR
Material	Adjusting knob	POM
Regulating range		0.05~0.85 Mpa
Max. service pressure		1Mpa
Ensure pressure resistance		1.5 Mpa
Fterng agua		40um cr 5μm
Recommended oil		LSOVG 32
Temperature		-5~60ºC
Vahe type		Diaghragm type
Gmuge		Standard:Round type (Gl/8")
Gmuge		Option: Square embedded type
Port size		G1/4"
Capacity of air bw		25CC

Q & A: 1.What products are produced by your factory?
Answer: We, KGSY is a real factory, we produce all kinds of pneuamtic valve accessories, like air actuator, limit switch box, solednoid valve, air filter, declutch gear operator, electro-pneumatic positioner, adapters, etc.
We also assemble whole set pneuamtic ball valves & butterfly valves.
2.What international approval have you got?
Answer: At present, we have been approved with CCC, CE, IECEx, ATEX, UKCA, EAC certificate.
3.How long is the sample time?
Answer: Usually it will take 7 working days to make a sample.
4.How long is the lead time of a mass order?
Answer: We promise 25 days for each order and nearly 99.3% orders will be finished on schedule.
5.What's your strength?
Answer: We are a real factory, we have our own R&D team and control the quanlity and production time absolutly .
At the same time, we own the advantage of a trading company, which includes efficient comunication and strong ability gathering goods on the primese of specialty.

---
