Erosion Control Mat for Slope Protection Small Wire Cut EDM Machine

Product Description

Overview

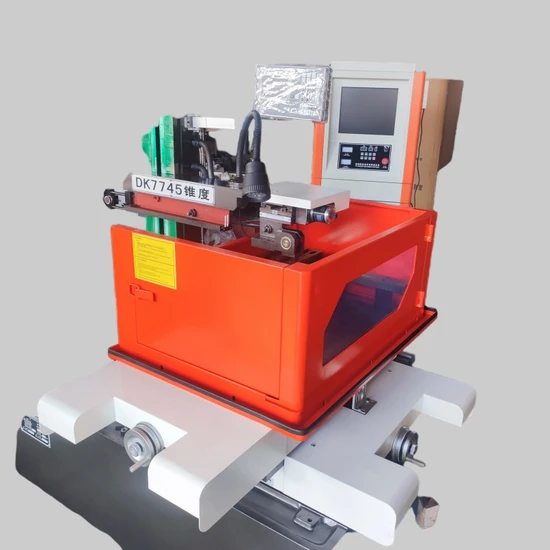

CNC edm wire cutting machine DK7745
Product Description
DK7745:
1.The castings are made of high-grade low-phosphorus and low-sulfur cast iron. The bed, workbench, wire conveyor and wire rack columns are treated with secondary artificial aging and natural aging, which greatly reduces the deformation coefficient of the machine tool, makes its structure stable, and maintains the accuracy of the whole machine very well.
2.The guide rails are all made of GCr 15A high-quality bearing steel. After multiple rigorous heat treatment processes, the organizational structure is stable and the quenching hardness is between HRC54-58, ensuring the accuracy and wear resistance of the guide rails.
3.The workbench carriage and the wire transport carriage are respectively made of high-precision ball screws manufactured by well-known manufacturers, which have the characteristics of low friction, high precision, stable wire transport, strong wear resistance, and long service life. It is driven by a five-phase ten-beat BF reactive stepper motor with large torque, small step distance, and high cutting positioning accuracy that is not easy to lose.
4.The wire conveying drum is made of seamless alloy steel pipe, alloy steel main shaft, dynamic balance, hard Cr plated surface, double-sided bearing assembly, wear resistance, corrosion resistance, small unbalanced torque, good electrical insulation. The transmission part adopts synchronous belt, smooth wire conveying and low noise. The proximity induction switch avoids the wear of mechanical commutation and improves reliability and service life.

Detailed Photos
Water outlet :
Guide :
Guide wheel:
Control cabinet :
Product Parameters

Specification	DK7720	DK7725	DK7735	DK7745	DK7745F	DK7750	DK7750F	DK7763	DK7763F
Size of working table(mm)	280*420	340*500	380*600	460*700	460*860	600*860	600*980	680*1080	680*1260
Travel of working table(mm)	200*250	250*320	350*450	450*500	450*630	500*630	500*800	630*800	630*1000
Max thickness of workpiece(mm)	300	350	460			600
Machined taper(optional)	0	±3°/80mm		±3°-±15°/80mm		±3°-±30°/80mm
Max carrying capacity(kg)	100	200	300	450	450	800	850	1000	1200
Total weight(kg)	800	1000	1240	1450	1550	2000	2200	3000	3200
Dimension L*W*H(mm)	1160*810*1300	1480*1010*1400	1660*1330*1400	1865*1520*1500		1865*1520*1500	2070*1950*1750	2265*1865*1980	2465*1865*1980
Power	AC/380V~220V 50HZ ≤3KW

Hot Sale Products
Our main products are CNC products, general lathes, electric tapping machines and other metal processing machines.
Packaging & Shipping
The machines are packed in wooden boxes to prevent any damage during transportation.
Choose the shipping method according to your needs
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
