| US$8,571.00-18,893.00 | 1 Set (MOQ) |
| Name | Features |
| Vice hopper | Size: 70Kg, 90Kg Material:hot-dip galvanized sheet, thickness:1mm |
| Drving motor | Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others, three-phase/single-phase Frequency:50Hz, AC current |

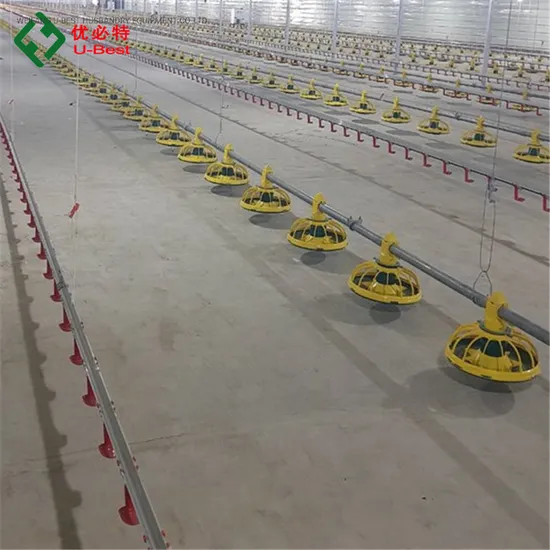

| Pan feed lines | Feed pipe: Diameter of feed pipe:Φ45mm Material:hot-dip galvanized steel with the zinc coating amount-more than 275m2. Helical spring auger is imported from South Africa, feeding ability:450Kg/h Feed pan Feeding line specification: 4 feed pans/3m, 3 feed pans/3m Feed pan capacity: 50-55 broilers/pan |
| Sensor | imported from Germany time delay range: 0-2hours The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed and will stop conveying feed when sensor touchs feed. |
| Lifting&suspension system | It's very convenient to adjust the feeding line height by winch. |
| Name | Features |
| Waterline front system | Front part is controller of water, which is usually installed in control room. *Pressure regulating valve: to make sure to supply stable water to drinking lines. *Filter: clean water and avoid blocking nipples. *Water meter: to measure water usage volume. *Doser/Medicator: add medicine to drinking system automatically to prevent disease. |
| Pressure regulator | Regulating stability; High switching performance; Water supply is sufficient&equality; Recoil cleaning with good cleaning result,save time and water; Good quality movable valve, easy to change. |
| Nipple drink lines | Nipple: The outside shell is made of high quality plastic, the valve rod is made of high quality stainless steel. a. Anti-corrosion, service life over 10 years; b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house; c. Valve rod can be movable in 360 degree, easy to drink; d. Meet eating demand of different stages chickens. Drip cup: Material: pure engineering plastic-PP. a. One-arm design, more suitable for modern poultry idea; b. Tight to water pipes, won't drop when touching in cold weathers. PVC square water pipe&galvanized supporting tube/aluminum profile suspension Drinking line specification: 15 nipples/3m, 12 nipples/3m Nipple drinker capacity: 8-12 broilers/drinker |
| Water display level tube | Use high transparency&impact resistant material, it's sturdy and durable, convenient to observe water level. |
| Lifting&suspension system | Correct driking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken groiwth, also wast water. It's very easy to adjust the height by winch. |
| Name | Features |
| Feed silo (Option 1) Manpower hopper (Option 2) | Feed silo: 1).Silo with standard ladder and guard railing, safe and reliable; 2).Firm connection and good sealing performance; 3).Galvanized steel sheet, more than 10 years service life. 4).Size: 3T, 5T, 8T, 10T, 15T, 18T, 20T Manpower hopper: 1).Galvanized steel sheet; 2).Size: 600Kg, 800Kg |
| Driving motor | Power:0.75Kw Voltage:380V/220V/others, three-phase/single-phase Frequency: 50Hz |
| Feed conveying pipe with auger inside | Diamater of conveying pipe:Φ75mm, Material:PVC Helical spring auger is imported from South Africa, feed ability:1400Kg/h Conveying length:60m |
| Sensor | imported from Germany |
| Specifications | 50'' butterfly cone fan | 50'' axial flow box fan | 36'' axial flow box fan |
| Flow amount(m3/h) | 51020 | 43170 | 20800 |
| Size(L*W*H)(mm) | 1380*1380*1360 | 1380*1380*450 | 1000*1000*450 |
| Noise level(db) | ≤65 | ≤65 | ≤64 |
| Power(Kw) | 1.1 | 1.1 | 0.4 |
| Voltage(V) | 380/220/others | 380/220/others | 380/220/others |
| Current(A) | 2.8 | 2.8 | 1.25 |
| Material | Corrugated paper |
| Thickness | 150mm |
| Width | 600mm |
| Height (without frame) | 1500mm, 1800mm, 2000mm |
| Height (with frame) | 1600mm, 1960mm, 2160mm |
