Wuling Motors PACR4O12 Electric box gear for 2-4 seats micro electric vehicle

Product Description

Product Description
Product Description

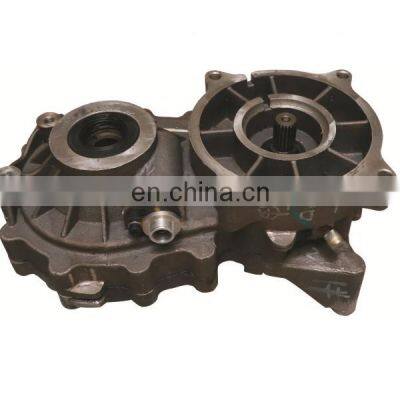

The structure of PACR4O12 electric driven gearbox is off-axis and disconnect for 2-4 seats micro electric car.

Item	Unit	PACR4O12
Transmission ratio	-	6.67( Variable 6-9)
Rated input torque	N.m	70
Max input torque	N.m	110
Rated input speed	rpm	4500
Max input speed	rpm	7500
Rated motor power	kw	15
Peak motor power	kw	29
Voltage	v	115
Distance between input and output shaft	mm	161
Weight	kg	13.25
Dimension	mm	340*412*205

Manufacturing Technique
Company Profile
Liuzhou Wuling Automobile Industry Co., Ltd is a large Sino-foreign joint venture established by Guangxi Automobile Group Co., Ltd and Hong Kong-listed company. Wuling Automobile Group Holdings Ltd(HK0305) based on the integration of original businesses of Guangxi Automobile Group Co., Ltd, including Auto parts, engines and special purpose vehicles, its total assets amounted to 12.731 billion yuan, the annual revenue in 2018 was 16.9 billion yuan.
