Wholesale High Quality Ab Series Low Backlash Planetary Gearbox for Servo Motor

Product Description

Planetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo Motor
Product Overview:

Precision planetary gear reducer is another name for planetary gear reducer in the industry. Its main transmission structure is planetary gear, sun gear and inner gear ring.
Compared with other gear reducers, precision planetary gear reducers have the characteristics of high rigidity, high precision (single stage can achieve less than 1 point), high transmission efficiency (single stage can achieve 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc. Most of them are installed on stepper motor and servo motor to reduce speed, improve torque and match inertia.
Planetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo Motor

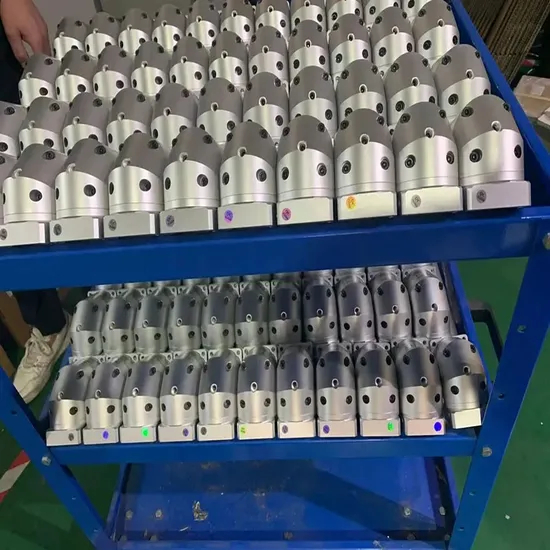

Advantages of the planetary gearbox: Low backlash High Efficiency High Torque High Input Speed High Stability High Reduction Ratio Detailed Photos

Product Parameters

Name	High Precision Planetary Gearbox
Model	AB042, AB060, AB060A, AB090A, AB115, AB142, AB180, AB220
Gearing Arrangement	Planetary
Effeiency withfull load	≥97
Backlash	≤5
Weight	0.5~48kg
Gear Type	Helical Gear
Gear stages	1 stage, 2 stage
Rated Torque	14N.m-2000N.m
Gear Ratio One-stage	3, 4, 5, 6, 7, 8, 9, 10
Gear Ratio Two-stage	15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
Mounting Position	Horizontal (foot mounted) or Vertical (flange mounted)
Usage	stepper motor, servo motor, AC motor, DC motor, etc

Various reduction ratios available. Please contact us. We will provide you with appropriate reduction gearbox according to your motor power
External Mounting Dimensions
1 stage reduction ratio 3~10
2 stage reduction ratio 15~100 features:
AB-series reducer features:
1. Helical gear design The reduction mechanism adopts the helical gear design, and its tooth shape meshing rate is more than twice that of the general spur gear, and has the characteristics of smooth operation, low noise, high output torque and low backlash 2. Collet type locking mechanism The connection between the input end and the motor adopts a collet-type locking mechanism and undergoes dynamic balance analysis to ensure the concentricity of the joint interface and zero-backlash power transmission at high input speeds
3. Modular design of motor connection board The unique modular design of the motor connecting plate and shaft is suitable for any brand and type of servo motor;
4. Efficient surface treatment technology The surface of the gearbox is treated with electroless nickel, and the connecting plate of the motor is treated with black anodic treatment to improve the environmental tolerance and corrosion resistance
5. One-piece gearbox body The gearbox and the inner ring gear adopt an integrated design, with compact structure, high precision and large output torque 6. Accurate concentricity of gear bar The sun gear made of the whole gear bar has strong rigidity and accurate concentricity
7. Solid, Single piece sun gear construction obtains precise concentricity with increased strength and rigidity. 8.Precision taper roller bearing support to increases radial and axial loading capacity. Our Advantages

SERIES: AB/ ABR/ AD/ADS/ ADR/ AF/ AFR/ AFX/ AFXR/ AE/ AER/ AE/ AERS
PLF series, PLE series, ZPLF series, ZPLE series, AB series, ABR series and many other models are available.

Applications
Company Profile
Certifications
Packaging & Shipping

---
