Hengchang Fine powder Double Stage Crusher

Product Description

Product Description
Product Description
Fine output first choice!

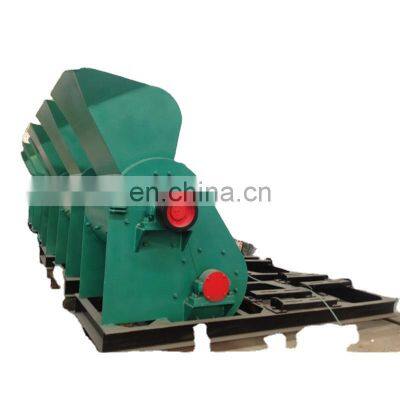

Hengchang Fine powder Double Stage Crusher

1. Applications of Double Stage Hammer Crusher
Double stage Hammer crusher can crush highly wet and hard materials such as coal slack, shale, cinder, construction waste, slag, furnace slag, cement, refractory, heat insulating materials, etc. as well as more than300 kinds of building materials. Better crushing effect can be accomplished in respect of building of brick plant and coal separation plant. Double rotors and double crushing, outlet size fine, no screen stencil, high wet materials no blcokage. High anti-wearing hammer, longer service life, hammer position shift rechnology triple the hammer service life. Hydraulic shell opening, easy operation and maintenance.
2. Features of Double Stage Crusher
♦two-stage without sieve at the bottom
♦High crushing ratio
♦optimized crushing
♦save 20% electricity
♦robust construction and easy operation
3.Double Stage Hammer Crusher Technical Parameter

Model	SCP 600×400	SCP 600x600	SCP800×600	SCP 900×800	SCP 1000x800
(mm)Feeding Size	≤100	≤150	≤200	≤260	≤400
Outlet Size(mm)	≤3 (<2mm above 90%)	≤3 (<2mm above 80%)	≤3 (<2mm above 80%)	≤ 3 (<2mm above 80%)	≤3 (<2mm above 80%)
Capacity(t/h)	15-25	15-30	50-70	50-90	60-120
Motor Power(kw)	18.5+22	22+22	37+45	55+75	75+55
Dimensions (L×W×H)(mm)	2560×1020×1650	2760×1280×1750	3760×1314×2140	3870×1700×3150	4500×1700×3150

The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
Our Services
Our Service:
1) Pre-sale Service:
Design the suitable products and offer the reasonable consultation to meet your need by our engineer.
We can also offer experiment to test the equipment that the customer need.
2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense.
We have a perfect after-sales service system and team with professional and for whole using life.
Our price are most competitive and reasonable, all order will be supplied within the stipulated period.
Company Information
Contact me if any inquiry!

---
