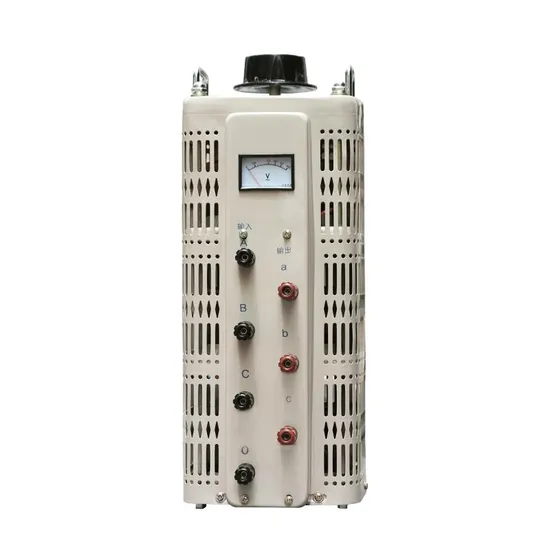

Shenglin Tsgc2-3kVA Three Phase Manual Voltage Regulators Variac Transformer

Product Description

Product Description
The TSGC2 (TSGC2J) contact regulator is an ideal AC voltage regulator for industrial applications (e.g., chemical industry, metallurgy, instrumentation, electromechanical manufacturing, light industry, etc.), scientific experiments, household electrical appliances, speed control, dimming, and power control.

Fundamental Principle
Voltage regulator is the turns ratio can be continuously adjusted autotransformer, when the regulator brush with the help of the handwheel spindle and brush holder, along the polished surface of the coil sliding, can change the turns ratio, so that the output voltage can be smoothly adjusted from zero to the maximum value.
Three-phase assembly structure: assembled by three unit windings of the same size linked coaxial assembly.As shown in the figure below.

Model and Meaning

Main technical parameters

Model Specification	Rated capacity	Phase	Rated frequency	Rated Input Voltage	Rated voltage range	Rated output current
	(KVA)		(Hz)	(V)	(V)	(A)
TDGC2-0.2	0.2	1	50/60	220	0~250	0.8
TDGC2-0.5	0.5	1	50/60	220	0~250	2
TDGC2-1	1	1	50/60	220	0~250	4
TDGC2-2	2	1	50/60	220	0~250	8
TDGC2-3	3	1	50/60	220	0~250	12
TDGC2-5	5	1	50/60	220	0~250	20
TDGC2-7	7	1	50/60	220	0~250	28
TDGC2-10	10	1	50/60	220	0~250	40
TDGC2-15	15	1	50/60	220	0~250	60
TDGC2-20	20	1	50/60	220	0~250	80
TDGC2-30	30	1	50/60	220	0~250	120
TSGC2-3	3	3	50/60	380	0~430	4
TSGC2-6	6	3	50/60	380	0~430	8
TSGC2-9	9	3	50/60	380	0~430	12
TSGC2-15	15	3	50/60	380	0~430	20
TSGC2-20	20	3	50/60	380	0~430	27
TSGC2-30	30	3	50/60	380	0~430	40

Appearance, Installation Dim

Product Details

Company Profile
Zhejiang Shenglin Trading Co., Ltd. was born in China's electrical capital - Yueqing, ploughing into the electrical production industry for more than 30 years, with excellent product expertise, a wealth of electrical categories, as well as professional production lines, and with the process of marketization and internationalization, and continue to comply with the requirements of the times, and gradually adjust, improve and develop.
We always adhere to industrial development, create value for customers, adhere to technological innovation, high-quality development, (and people-oriented) five-star service business philosophy, to create a new ecological electrical industry chain.
Our mission: adhere to the globalization of efficient, high-quality and cost-effective electrical products, promote the transformation of product intelligence and green, so that the current safely through every corner of the world.
Our vision: to build an internationalized electrical enterprise with first-class service quality. Green ecology, sustainable development, people-oriented
Our values: market-oriented, customer-centered, adhere to the green ecology, and promote the sustainable development of the industry.
WORKSHOP

FAQ
Q: Are you a manufacturer or trading company?
A: We are trading company, but our brother factory has been manufacturing electrical products for over 20 years.
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, we do have. Please feel free to contact us on line or by Email. We would be glad to share our catalogue with you!
Q: I need your price list of all your products, do you have a price list ?
A: We apologize that we do not have a list, please understand that raw material prices are constantly changing, which means that prices could not always stay the same. If you are interested in any items, please let us know and we will update you on the price as soon as possible!
Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalog only collects most of our products, please do not hesitate to let us know you need any other products!
Q: What about your delivery time?
A: Each model has a different production time, please contact us and we will let you know at the first time.
Q: Can you provide samples ?
A: Sure, we could provide samples for tests or quality check.
Q: What's the payment terms?
A: We accept T/T, 30% deposit and 70% balance before shipment.
Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And sure you can pay RMB.
Q: Would you accept using customer's logo?
A: Yes, we can provide OEM and ODM service.
Q: How long is the warranty time?
A: 12 months after receipt of goods.

---
