Iir Rubber Material Banbury Mixer

Product Description

Why Choose Products from Lanhang Machinery
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Futures of 80L Rubber Banbury Mixer:
1. Intermeshing or tangential rotor
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC)
3. Pneumatic or hydraulic type top mounted ram is optional
4. Inverted AC motor or variable speed DC motor is optional
5. Copper-ring and hydraulic sealing
6. 2-wing, 4-wing, 6-wing are available
7. Excellent dispersing effect
8. Best mixing rotor and chamber to guarantee 100% mixing effect
9. Low noise, safe mixing
10. Maintenance friendly and long-life service

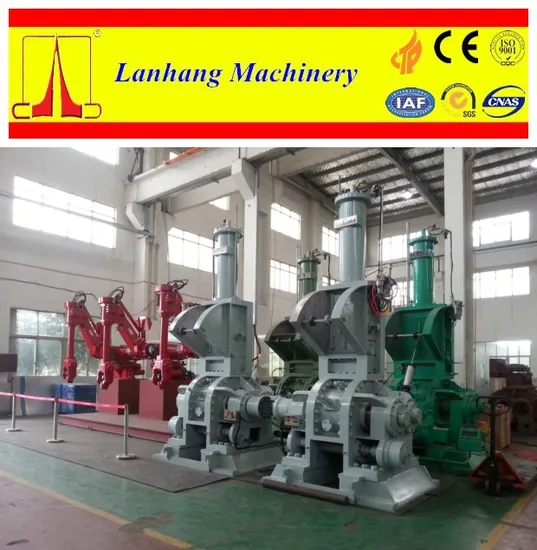

Machine Overview:

Internal batch mixers such as the Banbury mixer are used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.

It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life. It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.


Main features:

Choice of Rotor Designs
Pneumatic or Hydraulic Ram
Direct Drive or Compound Drive
Multiple contact surface hardfacing or heat-treating
Temperature sensing and oil injection
NMC Mixer Control System: monitors and controls mixing time
Mixer Accessories: Hydraulic Power Unit, Dust Stop Lube Unit, Air Valve and Temperature Control System

Technical Parameters:
Tangential Rotors

Items	LX-75L	LX-100L	LX-120L	LX-160L	LX-190L	LX-255L	LX-270L	LX-410L
Total chamber volume (L)	75	100	120	160	190	255	270	410
Useful chamber volume (L)	50	80	100	120	140	115	188	319
The main rotor speed(rpm)	40	40	40	40	40	4-40 6-60	4~40	6~60
The rotor speed ratio	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17
Max capacity (T/H)	1.25	1.6	1.95	2.64	2.85	4.6	4.6	7.4
Motor power (KW)	160	220	310	355	870	1500	1250	2X1250
Weight(T)	20	24	26	26	30	55	55	76

Intermesh Rotors

Model	LH-100Y	LH-145Y	LH-200Y	LH-250Y	LH-330Y
Chamber Volume (L)	100	145	200	250	330
Filling Coefficient	0.65
Rotor Speed (r/min)	10-60
Rotor Speed Ratio	1:1.17
Max. Capacity (T/H)	1.36	2.2	3.05	4.2	5.0
Motor Power (Kw)	520	720	1100	1320	1700
Dimension (m)	6.6x2.8x4.4	7.5x3.1x5.5	8.1x3.5x5.4	8.2x3.8x5.5	10.0x4.7x6.6
Weight (T)	19	29	48	65	80

---
