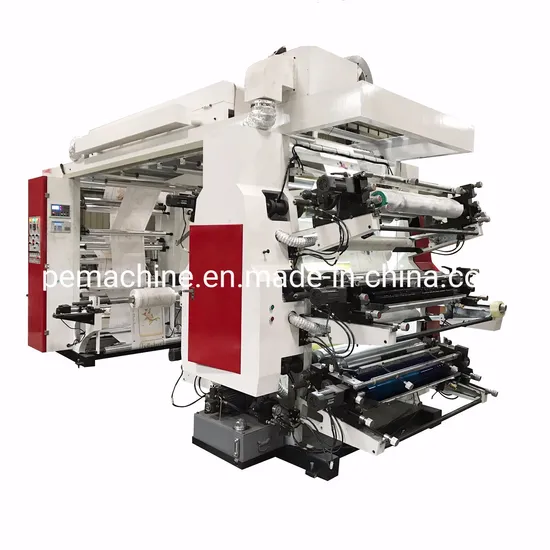

High Speed 6 Colors Stack Type Flexo Printing Machine

Product Description

HYT series HIGH SPEED FLEXO PRINTING MACHINE
Description :
1. Major configuration
1. Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering.
3. Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
4. The special made modulus angular gears adopted; Accurate printing size and full printing specifications (5mm is a spec)
5. With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Autotension control
9. Unwind with auto deviation correction system (EPC)
10. EDGE position control
11. Reversible printing 6 color press for6+0, 1+5, 2+4, 3+3.
12.1 sets of printing cylinder, sizes: 15 inches.
Main Technical Parameter:

Printing width Item	600mm		800mm	1000mm	1200mm	1400mm	1600mm	1800mm	2000mm
Printing material	Single adhesive paper, Double adhesive paper, Copper plate paper, Kraft paper: 50-180g/ Single filter membrance paper, Double filter membrance paper: 80-300g/
Printing color	4 special color
Material feeding width	700mm		900mm	1100mm	1300mm	1500mm	1700mm	1900mm		2100mm
Printing length	7.5 ″ -40 ″ /190mm-1016mm 7.5 ″ -50 ″ / 190mm-1270mm 7.5 ″ -60 ″ /190mm-1524mm
Printing plate lifting system	Pneumatic/Hydraulic press control
Mechanical speed	180m/min
Printing speed	10-15m/min
Anilox cylinder	80DK-170DK(Germany)/180LPI-800LPI
Register precision	Longitude: ± 0.1mm Transverse: ± 0.1mm
Rewinder/Unwinder DIA	ø 1000mm /ø 1200mm /ø 1500mm
Master motor	5.5W			7.5KW		11W		15KW
Rewinder motor	5.5KW					7.5KW
Unwinder motor	5.5KW					7.5KW
Electrical header	26KW			32KW		38KW		45KW
Blower of header	0.75KW			1.1 KW W		1.5 K W		2.2 K W
Blower of nature wind	0.75 KW			1.1 KW		1.5 KW		2.2 KW
Inking motor	370W					750W
Master frequency converter	5.5KW			7.5KW		11KW		15 KW
Master power	45KW			54KW		68KW		82KW
Weight	8100Kg	g8760Kg		9300 Kg	9750 Kg	10120Kg	10500Kg	11000Kg		11700Kg

FAQ
1.Is your company trading company or manufacturer?
We are manufacturer specialized in plastic machine for more than 35 years, all of our engineer with more than 20 years experience.
2. Where is your factory? How can i visit your company?
Our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station. Welcome to visit our manufacture.
3 What's the scale of your company?
Our company covers 14000 square meter, over 11000 square meter of which is bulding area, consisting over 100 staffs, 20 engineers for technical support.
4 How long is your delivery time?
Our delivery time is 30-45 days. Ugently, we can make your machine first. About 10 days.
5 What's your warranty policy?
18 month guarantee and 1 year after-sales maintenance.

6 What package do you use for the product?
Covered with plastic film. Wooden box package need extra cost .

7 Does your manufacture provide installation service?
Our engineer can go to customer factory to installation. Buyer should prepare materials to test the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary since the day start out until the day arriving at factory.
8 What are your terms of payment?
We accept T/T, L/C. western union.
9 How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
10 Does your engineer understand English?
Our engineer understand a little English. But don't worry, We have professional translators.And All our engineer have more than 20 years machine installation experience.

---
