Large Od800mm HDPE Pipe Welding Machine Butt Fusion Welding Machine

Product Description

Product Description

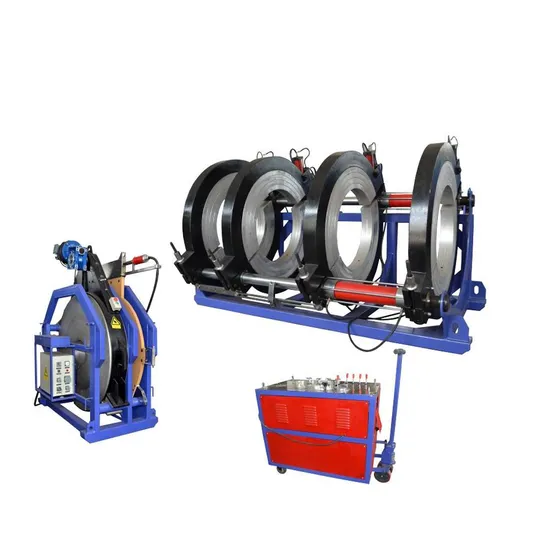

CRDH 800-1000
1.Hydraulic Control Butt Fusion Welder.
2.Suitable for butt fusion welding of plastic pipes and fittings made of PE PP, and PVDF in construction site or workshop.
3.Removable PTFE coated heating plate with separate temperature control system.
4.Machine is made of high-strength with low-weight advanced materials, it's durable.5.Easy to operate.

SPECIFICATIONS
Model	CRDH 800	CRDH 1000
Working Range	500~800mm	630~1000mm
Clamps (mm)	500, 560, 630, 710, 800	630, 710, 800, 900, 1000
Power Supply	380V/50HZ	380V/50HZ
Total Power	16.9W	26.2KW
Environment Temperature	-5 to 45 ºC	-5 to 45 ºC
Max Temperature of Heating Plate	270ºC	270ºC
Total Weight	1440kg	1900kg
Optional Accessory	Stub end holder and Special inserts

Including Part	QTY
Machine Body	1 Set
Heating Plate	1 Set
Hydraulic Unit Station	1 Set
Milling Cutter	1 Set
Clamps	1 Set
Support Tool	1 Set

Machine Body
The high quality material ensure the strong body.
4 clamps offer a better preparation before and after the welding job.
Aluminum alloy frame providing a light structure weight.
Frame made of high strength materials and structures, 45 degree tilt design.Heating Plate
The special designed sensors and thermograph provide high reliability during the working process.
Heating plate with hidg precision temperature control system, and waterproof coated.
Quick-react cutter lift saving more labor cost. Hydraulic Power StationIntergrated design with electric box saving the quanity of equipment parts makes it easy and convient to be operated.
Open-style lightweight design reducing the weight of machine body makes it more convient to be carried with. Application Application
Buttfuison Pipe Connect
1.Suitable for connecting HDPE, PP and PVDF pipes in construction sites and trench, as well as in the workshop.
2.Used to butt fusion connect the fittings such as reducer, tee, cross, flange etc. and the pipe which are made of HDPE, PP and PVDF.
3.Sturdy, durable and reliable machine that can be operated in any complex environment and under other difficult conditions. Related Products

Related Products

Butt Fusion Fittings

HDPE Pipes

Electrofusion Fittings

Certifications
We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
FAQ

(1) Are you trading company or manufacturer?

We are a share industry and trade integrated company, CHUANGRONG is in charge of import and export of our own 5 factories, and we also sell some associated products.

(2)Where is your company?

CHUANGRONG is located at Chengdu which is the hometown of pandas. Our factories are headquartered in Deyang, Sichuan, China.

(3)Can I visit your factory?

Sure, If you want to have a visit to our factory, please contact us to make an appointment.

(4)What are the technical indicators of your products?

The technical indicators of our products include appearance, Elongation at break, Oxidation induction time, Hydrostatic strength testing. The above indicators will be tested by WRAS, SGS or a third party designated by the customer.

(5)What certifications do you have?

Our company has acquired IS09001 quality management system certification, CE, SGS, WRAS Product Certification.

(6)Can I get samples before order?

Yes, usually we can provide the samples of pipe & fitting for free, but you need to cover the freight cost.

(7)What is your complaint hotline and email address?

If you have any dissatisfaction, please call Tel: +86 28 84319855, or send your question to our E-mail. We will contact you within 24 hours, thank you very much for your tolerance and trust.

Company Profile
CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.
CHUANGRONG's mission is providing different customers with perfect one-stop solution for plastic pipe system. It can supply professionally designed, customized service for your project.
CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China.
Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.
CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555, DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.
CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 60 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

---
