Mini Universal Drilling and Milling Machine Zx50c China High Quality Small Vertical Drilling and Milling Machine

Product Description

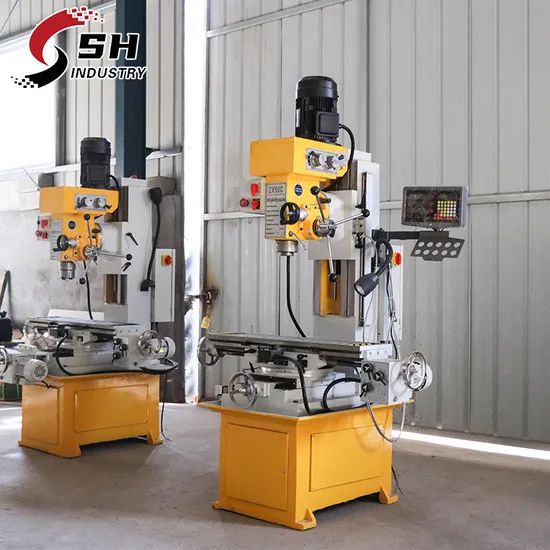

Mini Universal Drilling and Milling Machine ZX50C China High Quality Small Vertical Drilling and Milling Machine
Product Description
Characteristics:
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Main technical Specifications:

Specifications	ZX50C
Max.drilling dia.(mm)	50
Max.end milling width(mm)	100
Max.vertical milling dia.(mm)	25
Max.boring dia.(mm)	120
Max.tapping dia.	M16
Distance between spindle nose and table surface(mm)	50-410
Spindle taper	MT4
Spindle speed range (r.p.m)	40-1400,8 steps
Spindle travel(mm)	120
Table size(mm)	800×240
Table travel(mm)	400×215
Motor(kw)	0.85/1.5
Overall dimensions(mm)	1400×900×1500
N.W/G.W(kg)	500/600

Detailed Photos

Company Profile

Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
