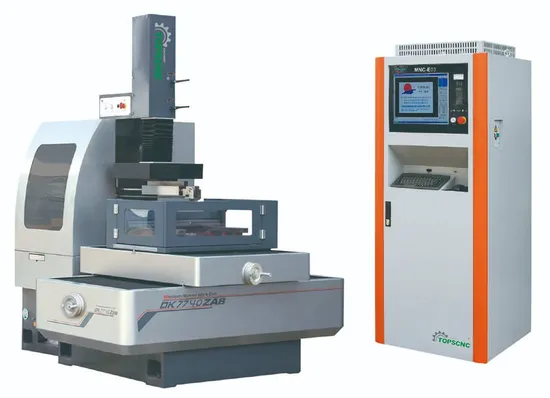

Electrical Discharge Machining CNC Wire Cut EDM Machine

Product Description

Product description

Technique parameters	Unit	DK7732ZB
Table size (WxD)	mm	440×680
Table travel (XxY)	mm	320×400
Table travel (UxV)	mm	140×140
Z-axis control		manual control
Z-axis guideway		slide guides
Max. workpiece weight	kg	600
Thickness of workpiece	mm	350
Max.taper angle		±15°/80mm
Diameter of cutting wire	mm	φ0.15~φ0.20mm(recommendφ0.18mm)
Feeding speed	m/sec	1~11.4m/sec adjustable
Precision	mm	≤0.015
Machining speed	mm²/min	>200
Surface roughness	μm	Ra≤2.5
Motor type		X,Y,U,V stepper motor
Control axis		4 axis simultaneous
Min. control pace	mm	0.001
Power supply		3N-380V/50Hz
Max. working current	A	12
Power consumption	Kw	1
Working liquid		JA-1
Water tank	L	55
Filtering mode		filter screen
Control System		Auto-cut
Machine weight	kg	1500
Machine dimensions	mm	1765×1170×2150

Product details image
1. Optional two-axis or four-axis hybrid stepper motor
2. Four-axis hybrid motor effectively enhance the dynamic response characteristics of large swing machine, to ensure the accuracy of a large taper cutting
3. Spray water to follow the molybdenum wire tilt, in the cutting process to ensure smooth chip removal, is conducive to the stability of the large taper processing
4. Through the machine tool parts of the aging, heat treatment and effective, sophisticated follow-up processing, assembly, making the machine has a good accuracy and accuracy to maintain the characteristics
5. Electric control part of the non-power resistance, no transformer, so the cabinet does not heat, all the energy are used for cutting and greatly delay the aging of components, is conducive to long-term rapid cutting
6. Narrow pulse width, high current characteristics of high-frequency power supply, wire conveyor for the smooth characteristics of the machine and the various parts of the fine processing and assembly characteristics to ensure that the cutting of the workpiece surface quality
7. The use of non-stop constant current high frequency voltage cutting process, effectively avoiding the voltage and current negative, which greatly reduces the loss of molybdenum wire, constant current source technology to enhance the utilization of power, reduce power consumption
8. Innovative peak current limiting method and technology, even in the high current cutting, encountered cutting short circuit, due to the peak current is limited, it will not break the wire, thereby significantly reducing the rate of broken wire
9.V-axis optional linear guide, ball screw, improve the quality of taper processing
Why choose us
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.Q. Could your engineers go to our factory to install the machine and train our workers?
A:Yes, our engineers could go to your factory and assist you.Q:What is your warranty?
A:One year after shipment ,consumables are not included.Q: What is your terms of payment ?
A:L/C or T/T before shipment.
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China
Web: topscnc.en.made-in-china.com

---
