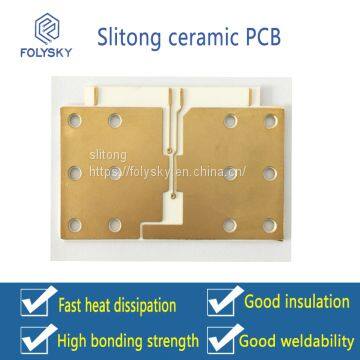

Copper coated ceramic substrate.

Product Details

Product Details

Product Description

Product Description
Place of Origin:Hubei, China (Mainland)
Brand Name:Slitong
Base Material:ceramic
Max panel size:140mm*190mm
Copper Thickness: 0.001-1.0mm
Board Thickness: 0.254mm,0.38mm,0.635mm,0.8mm,1.0mm
Min. Hole Size: 0.06mm
Min. Line Width: 0.2mm
Min. Line Spacing: 0.2mm
Surface Finishing: Immersion Gold,Immersion Au,OSP
Number of Layers: a single layer
Supply Ability:18000 Square meters/year
PRODUCT FEATURES
1.high precision, good electrical and thermal properties, high bonding strength of.
2.good weldability, blind hole through hole can be realized.
3.mature technology, environmental protection, pollution-free, cost is lower than traditional technology.
4.a wide range of applications, single-sided, double-sided three-dimensional ceramic circuit board can be produced.
5.customized production, without mold opening, short production cycle
