US$3,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Flange
Controlling Mode
Pneumatic or Hydraulic
Max. Processing Dia.
4064mm
Min. Clamping Dia.
1524mm
Suitable for
Flange Facing
Transport Package
Woodencase
Production Capacity
200sets Per Year
Product Description

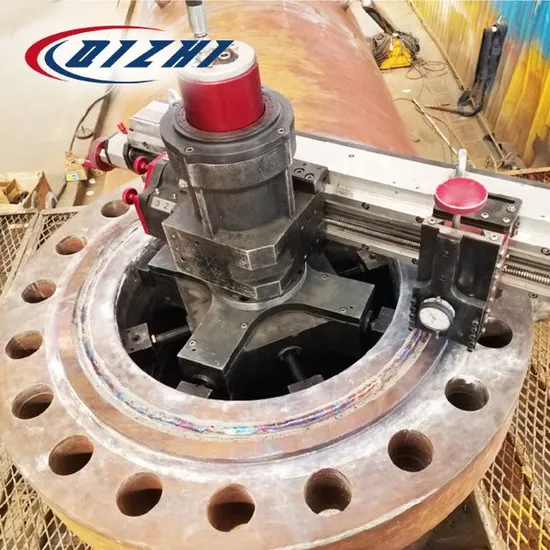

QIZHI Internal installed Pneumatic or Hydraulic Flange Facing Machine
The internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications
| Model | Facing Range | Installation Mode | Drive Mode |
| Pneumatic | hydraulic |
| QZ180MME | 0-7" | 0-185mm | External installed | * | |
| QZ300MME | 0-12" | 0-305mm | * | |
| QZ600MME | 0-24" | 0-610mm | * | |
| QZ355MM | 2-14" | 50-355mm | Internal installed | * | |
| QZ610MM* | 2-24" | 50-610mm | * | |
| QZ860MM | 6-34" | 152-865mm | * | |
| QZ1000MM | 6-40" | 152-1016mm | * | |
| QZ1500MM | 12-60" | 305-1500mm | * | |
| QZ2000MM | 24-80" | 610-2032mm | * | * |
| QZ3000MM | 42-120" | 1067-3050mm | * | * |
| QZ3500MM | 55-140" | 1270-3556mm | * | * |
| QZ4000MM | 60-160" | 1524-4064mm | * | * |
High torque precision transmission Power type rotatable tool holder Quick assembly of size bases
Wind Tower Fabrication Machine
QIZHI machine provides complete fabrication solution for wind tower fabrication, including plate cutting machine, plate rolling machine, shell and shell fitting up rotator, welding column and boom, grinding machine, repair machine, flange facing machine.
>>
