Full Automatic Sawing Heavy-Duty Timber Machine Horizontal Band Sawmill

Product Description

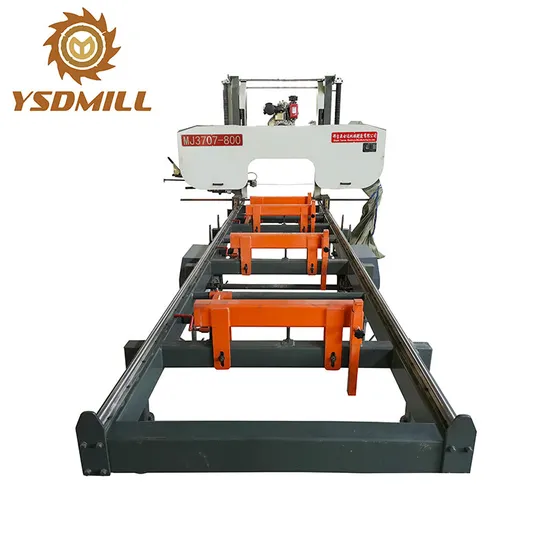

Product Description The Heavy duty horizontal sawmill machine is the latest design from YSDMILL. Heavy duty horizontal sawmill machine is a heavy-duty band saw machine specifically designed for large diameter logs. It can cut logs with a maximum diameter of 1500mm. The Heavy duty horizontal sawmill machine is equipped with a fully automatic PLC operating system. Able to achieve automated processes for wood cutting.
YSDMILL Heavy duty horizontal sawmill machine is widely used for sawing large logs in forests and for sawing large diameter logs in wood mills. The heavy duty horizontal sawmill machine is a good helper in the wood industry.

Model	YMJ32-800E	YMJ36-1000E	YMJ40-1500HD
Max sawing dia	800mm	1000mm	1500mm
Saw wheel dia	800mm(32inch)	900mm(36inch)	1000mm(40inch)
Max sawing length	5000mm	5000mm	5000mm
Saw blade width	80mm	80mm	100mm
Saw head power	18.5kw(25hp)	22kw(30hp)	75kw(102hp)
Saw blade tension	Automatic	Automatic	Automatic
Saw head lifting	Automatic	Automatic	Automatic
Saw head walking	Automatic	Automatic	Automatic
Cutting measurement	Automatic	Automatic	Automatic
Cutting speed	Adjustable	Adjustable	Adjustable
Hydraulic power	4 kw	5.5 kw	11 kw
Log loading	Hydraulic	Hydraulic	Hydraulic
Log turning	Hydraulic	Hydraulic	Hydraulic
Log locking	Hydraulic	Hydraulic	Hydraulic
Length of track	6 Meter	6 Meter	6 Meter
Voltage	380V/50HZ/3phase	380V/50HZ/3phase	380V/50HZ/3phase
Weight	5000kgs	7000kgs	11000kgs
Overall size(L/W/H)	7*3.1*3.5m	7*3.5*3.9m	8*4*4.5m

It is suitable for large-scale production in sawmills, and is widely used in large-scale wood processing in virgin forest areas.

Carbide saw blade for smooth and precision cutting.

Customization is supported, and the machine can be customized according to the diameter and length of customer's wood.

Cast-iron headblocks with Hydraulic / pneumatic cylinder for tight log locking.

Moveable headblocks is optional.

Stronger log locking hook.

The products are of high quality and good price, and at the same price, our machines have more advantages in quality.
Automatic Log loading Touch screen with joy stick for saw head control
Automatic log turning Automatic log locking
High quality motor, stronger power, longer service life Hydraulic power
saw blade cooling system Automatic fuel injection device
Packing & Delivery
Company Profile
FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturer.

Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.

Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.

Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.

Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.

Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.

---
