Basic Info.
Making Method of Parison
Injection Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
Number of Cavity
2 Cavities
Products Output
1200-1500bph
Auto Systems
Fully Automatic
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
Max: 5000ml
Production Capacity
30 Sets/Month
Product Description

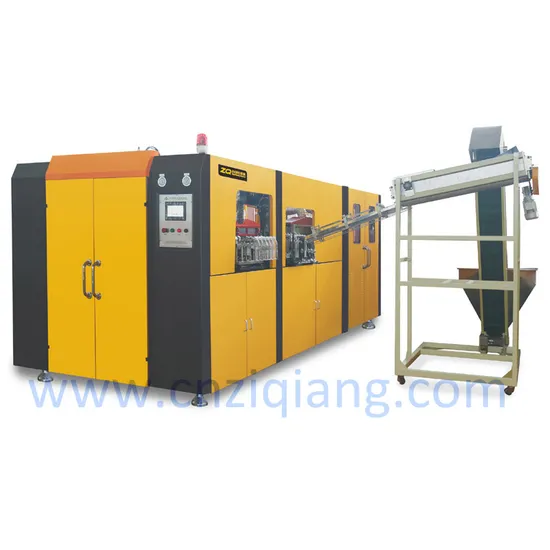

Full Automatic 2 Cavities PET Bottle Blowing Machine
Max: 5000ml, 2 Cavity, 1200-1500 Bottles/hour.
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L, 2.0L, 5L, 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
PET Bottle Making Machine,equipment information.
TYPE | ITEM | ZQ-B5000-1 | ZQ-B5000-2 | ZQ-B5000-4 | ZQ-B10L-1 |
CONTAINER | Number of cavity | 1cavities | 2cavities | 4cavities | 1cavities |
Output | 650-800 pcs/hr | 1200-1500 pcs/hr | 2000-2200 pcs/hr | 400-500pcs/hr |
Max.container volume | 5L | 5L | 5L | 10L |
Max.neck diameter | 45-80mm | 45-80mm | 45-80mm | 45-80mm |
Max.container diameter | 180mm | 180mm | 180mm | 220mm |
Max.container height | 350mm | 350mm | 350mm | 400mm |
ELECTRICAL SYSTEM | Number of lamp | 24pcs | 36pcs | 60pcs | 36pcs |
Max.heating power | 22kw | 36kw | 60kw | 36kw |
Installation power | 22kw | 60kw | 100kw | 40kw |
Actual power consumption | 18kw | 22kw | 36kw | 28kw |
AIR SYSTEM | Operatating pressure | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² |
Low pressure consuming | 1200Ltr/min | 1600Ltr/min | 2600Ltr/min | 1600Ltr/min |
Blowing pressure | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² |
High pressure consuming | 1200-1600 Ltr/min | 2600-3000 Ltr/min | 4500-5000 Ltr/min | 1600-2000 Ltr/min |
CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
Temperatuer | 10ºC | 10ºC | 10ºC | 10ºC |
Consuming | 3600kcal/hr | 4600kcal/hr | 6600kcal/hr | 5600kcal/hr |
Flow rater | 20Ltr/min | 30Ltr/min | 45Ltr/min | 30Ltr/min |
MACHINE | Machine dimension | 3.0x2.1x2.1(m) | 4.3x2.1x2.1(m) | 5.6x2.1x2.1(m) | 4.3x2.0x2.0(m) |
Machine weight | 2.3ton | 4.0ton | 5.5ton | 2.8ton |
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
>>
