Single Chamber Tea Bag Packing Machine Heat Sealing Outer Bag

Product Description

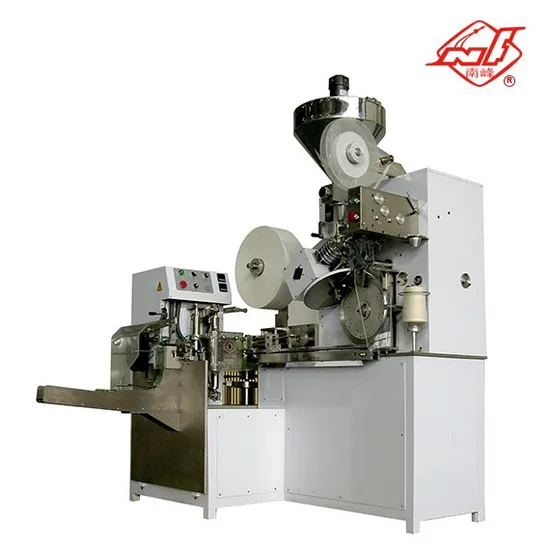

Model DXDC8IV Tea bag packing machine
Description:
Teabags with an individual overwrap will add appeal and value to your tea line. These tea bags include both a string and a tag.No staples are used.Individual overwrap tea bags are more expensive to produce than the simple "pillow style" teabag.
We offer one finished size of the overwrap tea bag (70mm x 80mm).
Note: The online video of machine operation.
Packing materials:
Fanning tea/buckwheat tea/medicinal plants and so on.
This tea bag packing machine is a high precision automatic line used for packing broken tea and similar herbs into small bags.
Feature:
This automatic tea bag packing machine is our newest model, and it has features filling, heat sealing, threading, labeling, and over-wrapping functions. Meanwhile, it also has an adjustable loading system for filling different sized tea bags. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables the use of different packaging materials. The main materials include paper/PE, plastic/foil/PE, and plastic/PE.
1. Technical data

1) Capacity:	Max.105± 5bags/minute
2) Max. dosage:	6cm³
3) Tea bag dimensions:	62.5mm x 50mm ( LxW )
4) Envelope dimensions:	80 mm x 70mm ( LxW )
5) Tag dimensions:	28 mm x 24mm ( LxW )
6) Thread length:	210mm
7) Power supply:	AC 380V / 220V
8) Total power:	2.36kW
9) Net Weight:	1210kg
10) Overall dimensions:	1.688 x 1.33 x 2.205m

11)Packing:	1pc/carton
12)Carton dimensions:	1.84 x 1.29 x 1.89m (L x Wx H)

2. Samples of tea bag
3. Company Introduction
CAMA is a manufacturer with 507 employees; It was established in 1999, located in Lichun west roadJianxi District, Luoyang city, Henan province, China. The company's land occupies an area of 44,025.10 square meters. The company passed ISO9001:2015, ISO14001:2015, and ISO 45001:2018 certifications and obtained CE certificate for tea and herb packing machine.
4.Register with Entry-Exit Inspection and Quarantine Bureau Of P.R.C and China council for the promotion of international trade Henan committee to offer the true documents for Customs Clearance in customers country in time.
Certification
5.Service policy
1)Offer oversea after-sale service when you request. Our engineer also provides online service for solving any unexpected problem ASAP.
2)To thanks our regular customer return order. CAMA will supply spare parts with the best quality on time. Our QC department will be guaranteed the spare parts to suit our tea bag packing machine.
3) We provide technical support and maintenance services for all customers.
4)By use of professional experience and advanced packing technology, we could provide technical consultation and customized design for customers. Meantime, we help more customers solve the problem of packing.
5)We could integrate the teabag packing production lines, design the food packing production lines, and also equip the related products.
6.Safety packing and delivery on time
