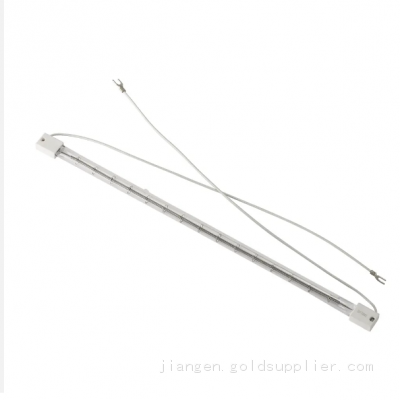

3000W 4000W Heating Lamp Infrared Heater For PET Bottle Blowing Machine
Basic Information:
Model: Infrared heating lamp
Form: Tube
Shape: TUBE
Wavelength: 0.8-1.8 microns
Color temperature: 2400-2500K
Heating device: tungsten wire halogen
Surface treatment: Half gold plating or white plating
Diya: Customized
Voltage: 110-240V, 220-380V, customized
Power: 400-2000W, customized
Lifespan: 5000 hours +
Structural materials: non-metallic materials
Principle: Tungsten filament in quartz glass tube
Transport packaging: carton or wooden box
Specifications: CE, ROHS
Trademark: OEM ODM
Origin: China
HS Code: 85168000
Production capacity: 50,000 pieces/week
Packaging and Delivery
Packing size: 50.00cm*2.00cm*2.00cm
Package gross weight: 0.500 kg
Delivery time: 7 days (1 - 100 pieces)
To be discussed (> 100 items)
Product Description
Product Description
Infrared Quartz Heater
Product Parameters
Infrared quartz heater uses iron-chromium alloy wire (FeCrAl wire) as heating element and quartz tube as protective sleeve. Its color temperature is 1800K and wavelength range is 2.2-3.5 microns. Since the main radiation band is in the medium wave area, it is most suitable for moisture drying and widely used in industrial drying. The power, voltage and tube length can be made according to customer requirements and drawings. There are two installation methods: horizontal installation and vertical installation. In order to improve the radiation efficiency, it can be semi-gold-plated or white-coated.
1500W Halogen Infrared Quartz Heater Type
1. Infrared quartz heater: A single quartz tube is used as the sleeve of the medium-wave infrared heater. The cross-sections of the heaters are ID8*OD10, ID10*OD12, ID14*OD17, ID17*OD20, ID28*OD34, etc. The service life can reach 5000 hours.
2. Infrared quartz heater: Quartz double tube is used as the heater sleeve. Due to the special double tube design, this type of heater has high mechanical strength, the maximum length can reach 6 meters, and the service life can reach more than 5000 hours.
When you make an inquiry, please specify the following details
1. Diameter, total length, voltage, power, operating temperature
2. The terminal area, how you want the heater to connect to the power source (screws, cables, cover, etc.)
3. Surface quartz tube color
4. Connect
5. It is best to provide a drawing containing all parameters
feature
-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- -------------------------------------------------- ---------------------------------------
1. Strong radiation and penetration
2. The heating response speed is fast, and 100% power can be reached when powered on
3. Save energy and protect the environment
4.Good thermal stability
5. Easy installation
Mid-wave infrared (IR)
Model Power
Voltage (Watts)
(V) Color temperature
(K) Peak wavelength
(Yeah) Life
(Height) Diameter
Dimensions (mm)
(mm)
IR-1 300 120 980-1380 2.5-4.5 5000 8-10 200-450
IR-1 325 120 980-1380 2.5-4.5 5000 8-10 200-450
IR-1 400 120-240 980-1380 2.5-4.5 5000 8-10 200-450
IR-1 500 120-240 980-1380 2.5-4.5 5000 8-10 200-450
IR-1 600 120-240 980-1380 2.5-4.5 5000 8-10 250-600
IR-1 800 120-240 980-1380 2.5-4.5 5000 8-10 250-800
IR-1 1000 120-240 980-1380 2.5-4.5 5000 10-12 300-1500
IR-1 1200 120-240 980-1380 2.5-4.5 5000 10-12 350-1500
IR-1 1500 120-380 980-1380 2.5-4.5 5000 10-12 350-1500
IR-1 1800 120-380 980-1380 2.5-4.5 5000 10-12 350-1500
IR-1 2000 120-380 980-1380 2.5-4.5 5000 10-12 350-1500
application
Infrared quartz heaters are widely used in industrial drawing such as water-based paint, water-based oil, water-based resin, water-based ink, glass, resin, plastic, papermaking, etc. They are also suitable for heating equipment, sterilization cabinets, paint sprayers, optical air conditioners, drying and curing, and food processing.
