Basic Info.
Package
in Good Quality of Plastic Tube
Transport Package
in Plastic Box Inside, Cartons Outside
Specification
ISO, DIN and American Standard
Production Capacity
5000000PCS/Month
Product Description

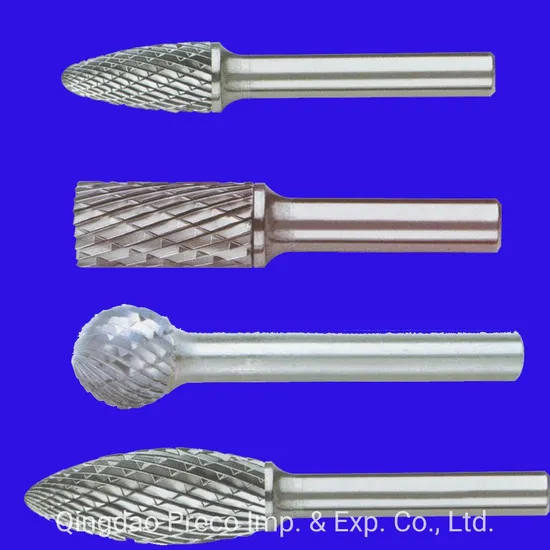

We manufacturer high quality SF MODEL Three Radius End Carbide Rotary Burrs
Features: (1) Made strictly accord to AMERICAN standard. (2) Single cut, double cut, Aluminium Cut & Diamond cut are avail. (3)Can also produce according to the clients' detailed samples and drawings. (5) Carbide Burrs sets are available. (6) Both metric and inch sizes are supplied.
(7) Sizes can be customized. Popular Sizes:
| | Carbide burrs-Three Radius End | |
| Style | Cutting Diameter | Cutting Length | Shank Diameter | Single Cut Model No | Double Cut Model No |
| SF-53 | 3/16 | 1/2 | 1/8 | 389-3002 | 389-3102 |
| SF-41 | 1/8 | 1/4 | 1/8 | 389-3004 | 389-3104 |
| SF-42 | 1/8 | 1/2 | 1/8 | 389-3006 | 389-3106 |
| SF-11 | 1/8 | 1/2 | 1/4 | 389-3010 | 389-3110 |
| SF-1 | 1/4 | 5/8 | 1/4 | 389-3012 | 389-3112 |
| SF-3 | 3/8 | 3/4 | 1/4 | 389-3014 | 389-3114 |
| SF-5 | 1/2 | 1 | 1/4 | 389-3016 | 389-3116 |
| SF-6 | 5/8 | 1 | 1/4 | 389-3018 | 389-3118 |
| SF-7 | 3/4 | 1 | 1/4 | 389-3020 | 389-3120 |
Except above shape burrs, we also supply other shapes, such as Clinder shape, Radius shape, Ball Shape,Tree Shape,Cone Shape, etc.
Other Models: .
| Carbide burrs Shape-A-Cylindrical |
| Style | Cutting Diameter | Cutting Length | Shank Diameter | SingleCut Model No. | Double Cut Model No |
| SA-43 | 1/16 | 1/2 | 1/8 | 389-0002 | 389-0102 |
| SA-42 | 3/32 | 7/16 | 1/8 | 389-0004 | 389-0104 |
| SA-41 | 1/8 | 9/16 | 1/8 | 389-0006 | 389-0106 |
| SA-13 | 5/32 | 5/8 | 1/4 | 389-0010 | 389-0110 |
| SA-14 | 3/16 | 5/8 | 1/4 | 389-0012 | 389-0112 |
| SA-1 | 1/4 | 5/8 | 1/4 | 389-0014 | 389-0114 |
| SA-2 | 5/16 | 3/4 | 1/4 | 389-0016 | 389-0116 |
| SA-3 | 3/8 | 3/4 | 1/4 | 389-0018 | 389-0118 |
| SA-4 | 7/16 | 1 | 1/4 | 389-0020 | 389-0120 |
| SA-5 | 1/2 | 1 | 1/4 | 389-0022 | 389-0122 |
| SA-7 | 3/4 | 1 | 1/ | 389-0024 | 389-0124 |
| SA-9 | 1 | 1 | 1/4 | 389-0026 | 389-0126 |
| Shape-B-Cylindrical End Cut |
| SB-42 | 3/32 | 7/16 | 1/8 | 389-0504 | 389-0604 |
| SB-43 | 1/8 | 9/16 | 1/8 | 389-0506 | 389-0606 |
| SB-41 | 1/16 | 1/2 | 1/4 | 389-0510 | 389-0610 |
| SB-13 | 5/32 | 5/8 | 1/4 | 389-0512 | 389-0612 |
| SB-14 | 3/16 | 5/8 | 1/4 | 389-0514 | 389-0614 |
| SB-1 | 1/4 | 5/8 | 1/4 | 389-0516 | 389-0616 |
| SB-2 | 5/16 | 3/4 | 1/4 | 389-0518 | 389-0618 |
| SB-3 | 3/8 | 3/4 | 1/4 | 389-0520 | 389-0620 |
| SB-4 | 7/16 | 1 | 1/4 | 389-0522 | 389-0622 |
| SB-5 | 1/2 | 1 | 1/4 | 389-0524 | 389-0624 |
| SB-7 | 3/4 | 1 | 1/4 | 389-0526 | 389-0626 |
| SB-9 | 1 | 1 | 1/4 | 389-0528 | 389-0628 |
| Shape-C-Cylindrical Radius End |
| SC-41 | 3/32 | 7/16 | 1/8 | 389-1004 | 389-1104 |
| SC-42 | 1/8 | 9/16 | 1/8 | 389-1006 | 389-1106 |
| SC-11 | 1/8 | 1/2 | 1/4 | 389-1010 | 389-1110 |
| SC-13 | 5/32 | 5/8 | 1/4 | 389-1012 | 389-1112 |
| SC-14 | 3/16 | 5/8 | 1/4 | 389-1014 | 389-1114 |
| SC-1 | 1/4 | 5/8 | 1/4 | 389-1016 | 389-1116 |
| SC-2 | 5/16 | 3/4 | 1/4 | 389-1018 | 389-1118 |
| SC-3 | 3/8 | 3/4 | 1/4 | 389-1020 | 389-1120 |
| SC-4 | 7/16 | 1 | 1/4 | 389-1022 | 389-1122 |
| SC-5 | 1/2 | 1 | 1/4 | 389-1024 | 389-1124 |
| SC-7 | 5/8 | 1 | 1/4 | 3891026 | 389-1126 |
| SC-9 | 3/4 | 1 | 1/4 | 389-1028 | 389-1128 |
| Shape-D-Ball |
| SD-41 | 3/32 | 3/32 | 1/8 | 389-1504 | 389-1604 |
| SD-42 | 1/8 | 1/8 | 1/8 | 389-1506 | 389-1606 |
| SD-14 | 3/36 | 3/36 | 1/4 | 389-1510 | 389-1610 |
| SD-11 | 1/8 | 1/8 | 1/4 | 389-1512 | 389-1612 |
| SD-1 | 1/4 | 1/4 | 1/4 | 389-1514 | 389-1614 |
| SD-2 | 5/16 | 5/16 | 1/4 | 389-1516 | 389-1616 |
| SD-3 | 3/8 | 3/8 | 1/4 | 389-1518 | 389-1618 |
| SD-4 | 1/2 | 1/2 | 1/4 | 389-1520 | 389-1620 |
| SD-5 | 5/8 | 5/8 | 1/4 | 389-1522 | 389-1622 |
| SD-7 | 3/4 | 3/4 | 1/4 | 389-1524 | 389-1624 |
| SD-9 | 1 | 1 | 1/4 | 3891526 | 389-1626 |
Shape-G Three Pointed End
|
SG-43
| 1/8
| 3/8
| 1/8
| 389-3502
| 389-3602
|
SG-42
| 1/8
| 5/16
| 1/8
| 389-3504
| 389-3604
|
SG-41
| 1/8
| 1/4
| 1/8
| 389-3506
| 389-3606
|
SG-1
| 1/4
| 5/8
| 1/4
| 389-3510
| 389-3610
|
SG-3
| 3/8
| 3/4
| 1/4
| 389-3512
| 389-3612
|
SG-13
| 1/2
| 3/4
| 1/4
| 389-3514
| 389-3614
|
SG5
| 1/2
| 1
| 1/4
| 389-3516
| 389-3616
|
SG-6
| 5/8
| 1
| 1/4
| 389-3518
| 389-3618
|
SG-7
| 3/4
| 1
| 1/4
| 389-3520
| 389-3620
|
Shape-H-Flame
|
SH-53
| 3/16
| 3/8
| 1/8
| 389-2504
| 389-2604
|
SH41
| 1/8
| 1/4
| 1/8
| 389-2506
| 389-2606
|
SH-1
| 1/4
| 5/8
| 1/4
| 389-2510
| 389-2610
|
SH-2
| 5/16
| 3/4
| 1/4
| 389-2512
| 389-2612
|
SH-5
| 1/2
| 1-1/4
| 1/4
| 389-2514
| 389-2614
|
SH-6
| 5/8
| 1-7/16
| 1/4
| 389-2516
| 389-2616
|
SH-7
| 3/4
| 1-5/8
| 1/4
| 389-2518
| 389-2618
|
Shape-J-Angle 60 Cone
|
SJ-42
| 1/8
| 3/32
| 1/8
| 389-4006
| 389-4106
|
SJ-1
| 1/4
| 3/16
| 1/4
| 389-4010
| 389-4110
|
SJ-2
| 5/16
| 3/16
| 1/4
| 389-4012
| 389-4112
|
SJ-3
| 3/8
| 5/16
| 1/4
| 389-4014
| 389-4114
|
SJ-5
| 1/2
| 7/16
| 1/4
| 389-4016
| 389-4116
|
SJ-6
| 5/8
| 9/16
| 1/4
| 389-4018
| 389-4118
|
SJ-7
| 3/4
| 11/16
| 1/4
| 389-4020
| 389-4120
|
SJ-9
| 1
| 15/16
| 1/4
| 389-4022
| 389-4122
|
Shape-K Angle 90 Cone
|
SK-42
| 1/8
| 1/16
| 1/8
| 389-4506
| 389-4606
|
SK-1
| 1/4
| 1/8
| 1/4
| 389-4510
| 389-4610
|
SK-2
| 5/16
| 3/16
| 1/4
| 389-4512
| 389-4612
|
SK-3
| 3/8
| 3/16
| 1/4
| 389-4514
| 389-4614
|
SK-5
| 1/2
| 1/4
| 1/4
| 389-4516
| 389-4616
|
SK-6
| 5/8
| 5/16
| 1/4
| 389-4518
| 389-4618
|
SK-7
| 3/4
| 13/8
| 1/4
| 389-4520
| 389-4620
|
SK-9
| 1
| 1/2
| 1/4
| 389-4522
| 389-4622
|
For more details of our products, please kindly visit our website to browse and download our catalog. You can also contact us directly through email, fax and phone to get further assistance.
>>
