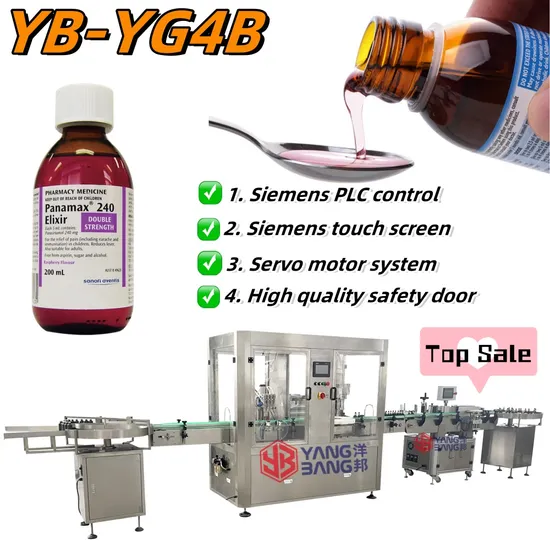

Yb-Yg4b Easy to Operate Automatic 100ml 300ml Syrup Beverages Filling Capping Machine

Product Description

YB-YG4B Easy to Operate High Quality Full Automatic 100ml 300ml Syrup Beverages Filling Capping Machine Product Parameters

Model	YB-YG4B
Filling head number	4
Capping head number	1
Filling volume	50-500ml
Capicity	10-40bottles/min
Filling accuracy	≤±1%(depends on products)
Pass rate	≥98%
Power supply	1Ph,220v,50/60Hz
Power	1.6kw
Net weight	600kg
Overall dimension	2200*1500*1900mm

Samples
Product Description
Usage: This machine is mainly used for syrup, drinks, soybean sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, essential oil, toner, hair oil, laundry detergent, ink,disinfectant, injection, industrial alcohol and various liquid filling and capping. Function and features : 1. Adopts plunger type metering pump filling, high precision;The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5. Machine body is made of 304 stainless steel, full compliance with GMP standard
