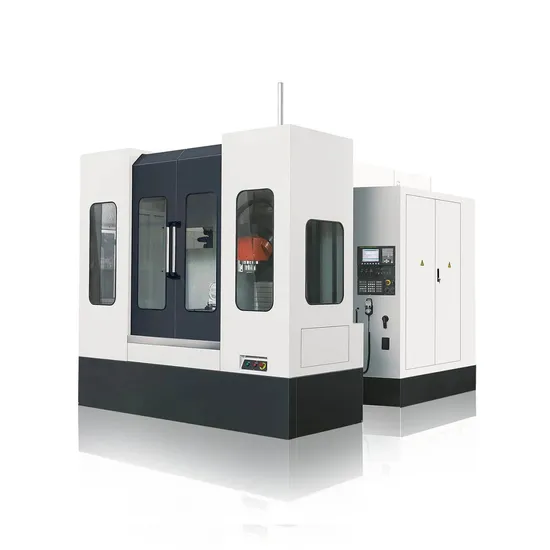

Fanuc Controller Automatic High-Speed Precision Heavy Metal Cutting CNC Milling Machine Tool Hmc800 Horizontal CNC Machining Center

Product Description

Product Description
Fanuc Controller Automatic High Speed Precision Larger Travel Heavy-Duty Metal Cutting CNC Milling Machine Tool Hmc800 Horizontal CNC Machining Center
Product Parameters

Model	HMC500	HMC630	HMC800	HMC1000
X-axis travel	800mm	1100mm	1600mm	2200mm
Y-axis travel	800mm	800mm	1000mm	1400mm
Z-axis travel	800mm	1100mm	1100mm	1200mm
Table size	500*500mm	630*630mm	800*800mm	1000*1000mm
Work table indexing	1°*360	1°*360	1°*360	1°*360
T slot size	5-18-100mm	5-18-100mm	6-22-125mm	125×22×6mm
Max. Loading of work table	800kg	1500kg	2500kg	6000kg
Spinlde center to table	50-850mm	50-850mm	0-1000mm	350-1550mm
Spindle nose to table surface	125-925	125-1225	180-1180	100-1300mm
Spindle taper	BT-40	BT-50	BT-50	BT-50
Spindle range	8000rpm	6000rpm	6000rpm	6000rpm
Spindle power	11/15KW	15/18.5KW	15/18.5KW	15/18.5KW
Cutting speed	1-8000mm/min	1-8000mm/min	1-8000mm/min	1-8000 mm/min
X/Y/Z fast speed	24/24/24 m/min	24/24/24 m/min	24/24/24 m/min	24/24/24m/min
X/Y/Z posion accuracy	0.008	0.008	0.008	0.015
Repeatability	0.005	0.005	0.005	0.008
Positioning accuracy of B axis	+10"	+10"	+10"	+10"
ATC	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)
Tool change time	2.7S	5S	5S	5S
Max. Tool weight	8kg	18kg	18kg	18kg
Max. Dimeter of tool	75/125mm	112/200mm	125/230	φ80/φ150mm
Max. Lenght of tool	300mm	300mm	300mm	400mm
Maching weight	9500kg	12000kg	15000kg	20000Kg
Machine dimention	3800*3200*3280	4860*3600*3460	6200*4800*3800	6800×5200×3800mm

Standard configuration:
The CNC system: FANUC 0i MD
The knife: 24 the mechanical hand knife
The spindle :High rigidity and precision spindle unit
Select the configuration:
M70B/M70A Mitsubishi OR SIEMENS 828D
Automatic chip system
CNC continuous indexing table (not suitable for heavy cutting)
The knife: Chain knife library
The main performance characteristics :
1 Fixed column structure
2 Numerical control sub table, minimum 10, hydraulic clamping, suitable for heavy cutting.
3 Gas liquid conversion lift balance device
4 Z axia to the four rectangular hard rail ;X axia to overload roller type linear guide rail; Y axia to rectangular hard rail
Application :
Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.
Realistic photos
Detailed Photos

Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
