CNC Aluminum Profile Roll Bend Machine and UPVC Window Forming Bending Making Machine

Product Description

Product Description

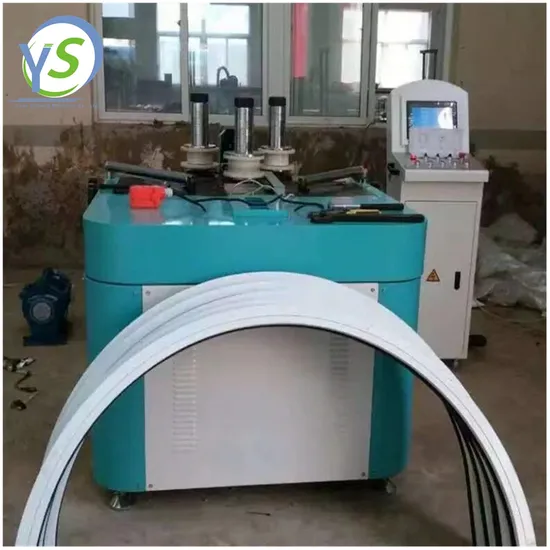

Full Automatic 3-Axis CNC Aluminum/PVC/UPVC Profile Rolling Bending Machine
1.This machine is suitable for various metal profiles, such as aluminum profiles, stainless steel profiles aluminum alloy door and window profiles, thermal insulation bridge profiles, ect. This machine can be controlled by a computer, make operations simpler and more convenient.
2.The machine has high-strength and reliable mechanical strength and rigidity, and can run stably and reliably in various complex environments.
3.Processing profiles and shapes are numerous and widely used.
4.It can bend the profiles into different shapes such as C-shaped, U-shaped, elintical, ful-circular, S-shaped and bread-shaped arcs. The bendable profiless mainly include iron, stainless steel, copper, aluminum and other metals and plasticsthermal break profiles, aluminum alloy door and window profiles.
5.The automatic numerical control system and special molding software are adopted, so the operation is simple and convenient.
6.The product performance meets the European advanced CNC bending machine standard.
7.Ultra low pressure self-test rebound system to minimize rebound volume.
8.Three roll control system, forming a closed space in the deformation area to minimize deformation and distortion of profiles.
Detailed Photos
Product Parameters

Model	CNC-20T
Power	380V 50HZ ( can be customized )
Saw head motor	10KW
Working pressure	0.2mpa
Min. diameter of bending	100mm
Max. width of profile	150x150mm
Max. diameter of rolls	350-750mm
Lower shaft center-dimensions	200mm
Hydraulic cylinder pressure	20T
Roller-holding shaft diameter	65mm
Rotation speed of shaft	1~8r/min
Positioning precision	0.01mm
Top roll runout	200mm
Torque	2000N.m
Dimensions	1300mm*1100mm*1500mm
Weight	1000 kg

Company Profile
Jinan Yusheng Machinery Co., Ltd. is dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment, as well as the practical application of processing sites. It has a team of experienced and expert employees in the industry, equipped with a large mechanical processing workshop with complete functions. It is a high-tech enterprise that integrates research and development, production, sales, and service. Since its establishment, the company has been committed to the research and development of energy-saving door and window technology, providing complete assembly equipment for aluminum profiles, ordinary plastic steel profiles, and high-end aluminum insulated glass production lines to the industry. The products cover industries such as industrial aluminum profiles, door and window curtain walls, rail transit, aerospace, industrial manufacturing, and household appliances. The company relies on strong technical expertise, rigorous production and processing, and a complete range of equipment to meet the needs of different investment scales. It can also customize personalized products of different grades according to customer requirements.
Creating value for users is our commitment, taking responsibility for each product is our responsibility, and customer satisfaction is the ultimate goal of our services; Winning customer, employee, and social satisfaction is the driving force behind our progress.
With high-quality products and an efficient service team, Yusheng Machinery looks forward to providing you with high-quality products and services!
Certifications
Our clients
FAQ
Q: Are you a manufacturer or trading company?
A: We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easily, so welcome to visit to our factory! Q: Our voltage is not 380V/50HZ, if can use the machines.
A: The voltage can be customized as clients' request. Q: How long is the delivery time?
A: For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 4. Q: How should I pay for my order? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. when the machine is ready ,
we will take pictures to you, and then you can do the balance. after we got your payment. We will send the machine to you.
5. Q: How about your service after sales? Can your engineer speak fluent English?
A: We offer the service from you received the machine, including installation of the machine,
6. Q: How to use machine? how to let machine work?
A: Usually we will teach you how to do by email or by Whatsapp. Our engineer has many years of experience for CNC machine service. He can speak very good English, so he can solve the problem in short time.
7. Q: How about the documents after shipment?
A: After shipment,well send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Service
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Provide 1 year complete warranty and life-time maintenance service;

---
