Food Dry Powder Ribbon Agitation Mixer Machine

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TDL-1000
Application
Granules, Powder
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Customized
Main Material
Stainless Steel
Mixing Capacity
500-1000L
Safety Features
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Speed Control
Variable Speed
Speed Range
40-49 R/min
Stirring Type
Spiral
Temperature Control
Without Heating
Working
High Speed Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating Type
Continuous Operating
Warranty
1 Year
Mixing Drum Shape
U Type
Transport Package
Wooden Case
Specification
1000L
Trademark
TANDY
Origin
Shanghai, China
HS Code
8479
Production Capacity
60PCS/Month

Product Description

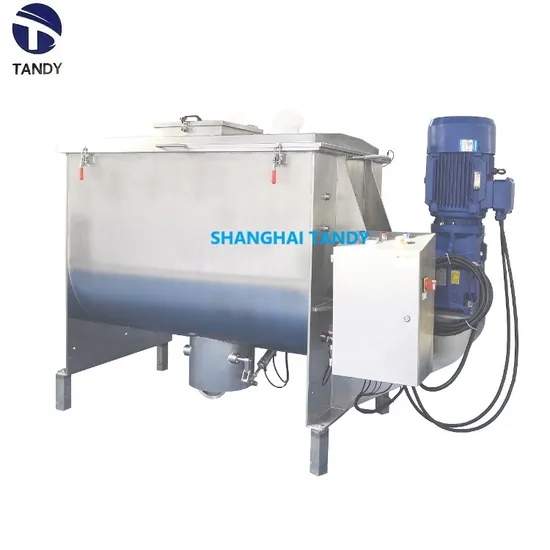

Food Dry Powder Ribbon Agitation Mixer Machine
Main Technical Data:
Model no.
Effective Volume(L)
Loading coefficient
Power(KW)
Rotate speed(R/min)
Dimension(mm)
Weight(kg)
TDL-200
200
0.6-0.8
4
53
2020X630X1360
360
TDL-300
300
0.6-0.8
5.5
53
2300X700X1490
530
TDL-500
500
0.6-0.8
7.5
45
2600X840X1680
780
TDL-1000
1000
0.6-0.8
11
45
2930X990X1790
1160
TDL-1500
1500
0.6-0.8
15
39
3280X1070X1950
1830
TDL-2000
2000
0.6-0.8
18.5
39
3520X1280X2080
2150
TDL-3000
3000
0.6-0.8
30.0
31
3820X1560X2330
3360
Pls feel free to contact us if you need more technical parameters!
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district, Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
The Horizontal Ribbon Mixer is consisted of U-Shape tank, spiral and drive parts. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. TDL series Ribbon Mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid a paste material into powder and granular material. The cover of the tank can be made as open in order to clean and change parts easily. Main Features:
1. This mixer is wide application for mixing material, for the paste mixing even; keep granule mixing intact.
2. Material proportion different1:1000~5000 perfectly mixing.
3. The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
