Glass Factory Moving Lifting Lifter Vacuum Lifter Sucker Glass Machine Equipment Machinery 800kg Capacity Glass Loading Electrical Glass Lifter

Product Description

Product Description

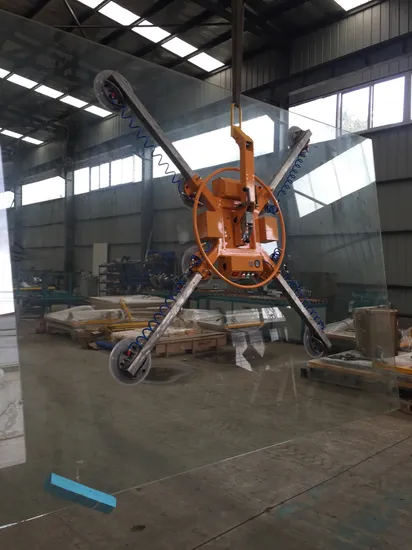

The battery vacuum lifter is well applied for handling and transporting glass in the production, processing and storage. Also it is mostly used for installing curtain wall, doors and windows.With manual tilting 90° and rotating 360° movements, it can solve most of handling and lifting work for glass sheet.This glass lifter is designed to use with the hoist equipment, like overhead cranes, lightweight crane, truck cranes, forklift and others.
Product Parameters
Power-off protection :10-15 mins once the power-off.

Type	Cup NO.(PCS)	Loading capacity(KGS)	ROTATE(360°)	TILT (90°)	MAX GLASS SIZE(MM)
RSY-DXF-500-4	4	500	YES	YES	2500*2500
RSY-DXF-600-6	6	600	YES	YES	2800*3700
RSY-DXF-800-8	8	800	YES	YES	3000*3800

Item material
Frame :seamless steel pipe .
Sucker material : silica gel.
Battery:Panasonic
Tilting+Rotate

Features:
Execution of tilting and rotating movements satisfy with most of handling requirement.
Energy saving system increases vacuum sucking time and working safety.
Vacuum gauge, battery indicator, vacuum reservoir make it safer.
A variety of suction frames are provided to match up with different glass dimensions and loads.
PICTURES


Packaging & Shipping

Company Profile
DINGANDA GLASS GROUP, with head office Tianjin DingAnDa Glass located in beautiful city Tianjin, which is a group company focus on glass industry since 1997. We aim to be the best platform for glass resource integration, to serve more customers from China domestic market and overseas market both.Till the year of 2020, we have 8 branches, they are listed as followings:1. Tianjin DingAnDa Glass Co., Ltd-----Head Office2. Qingdao DingAnDa Glass Technology Co., Ltd----Export Department3. Tianjin Rishengyuan Glass Technology Co., Ltd---- Factory for glass machines4. Tianjin TongDaLi Glass Co., Ltd-----Factory for Glass Accessories5. HengShengYuan Building Fire Protection Technology Langfang Co., Ltd----Factory for fireproof glass, Fireproof material for window & door.6. Shahe DingAnDa Glass Co., Ltd---- Warehouse for Glass Accessory & Glass Machine7. Shanxi DingAnDa Glass Co., Ltd---- Glass machinery domestic sales8. Hebei DingAnDa Glass Co., Ltd----New machinery factoryWith our own factories and experienced engineer team, we can provide you good quality, reasonable price and we supports customized products. Professional after-sales team to provide guarantee for product quality. Eight companies supply different items, you can buy almost everything from us, DingAnDa Glass one-step platform makes it easier to do the purchase work!We look forward for cooperation with you.

---
