US$2,500.00-4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Certification
CE, ISO 9001
Max. Driiling Capacity
40mm
Spindel Speed
31.5-1400rpm
Transport Package
Plywood Case
Product Description
SQUARE COLUMN VERTICAL DRILLING MACHINE:

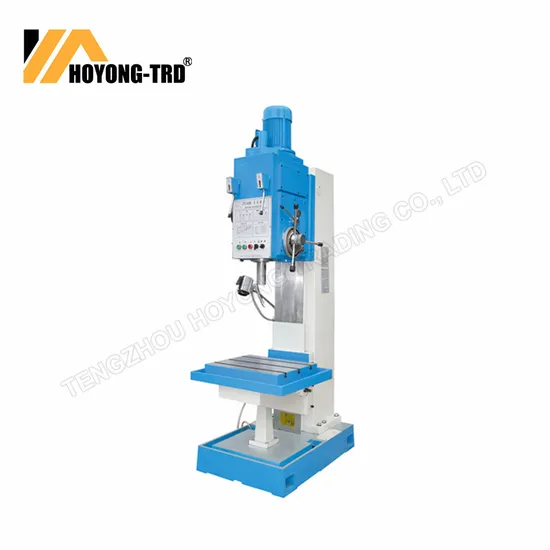

Square Column Vertical Drilling Machine Z5140B
Main feature of drilling machine
1. Z5140B and Z5140B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Z5150B and Z5150B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Standard accessories
Coolant system,tapping unit,halogen work lamp,operating tools,operator manual
SPECIFICATIOS:
SPECIFICATION | UNIT | Z5140B | Z5140B-1 |
Max drilling diameter | mm | 40 | 40 |
Spindle taper | | MT4 | MT4 |
Spindle travel | mm | 250 | 250 |
Spindle box travel(manual) | mm | 200 | 200 |
Spindle speed steps | | 12 | 12 |
Spindle feed steps | | 9 | 9 |
Spindle speed range | r.p.m | 31.5~1400 | 31.5~1400 |
Table size spindle feed range | mm/r | 0.056~1.80 | 0.056~1.80 |
Table size | mm | 560 x 480 | 800 x 320 |
Longitudinal(cross)travel | mm | 450/300 | 450/300 |
Vertical travel | mm | 300 | 300 |
Max distance between spindle and table | mm | 750 | 750 |
Main motor power | kw | 3 | 3 |
Overall size | mm | 1090x905x2465 | 1300x1200x2465 |
Net weight | kg | 1250 | 1350 |
>>
