Automatic Plastic Product Safety Toys Making Horzontal Injection Molding Machine

Product Description

Product Description
Detailed Photos
Proman Machine

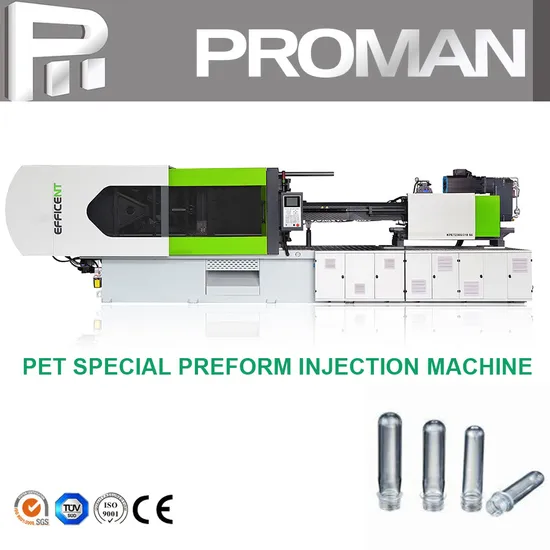

Injection molding machine
Motor details display
Proman Machine
Injection molding machine
Screw detail display
Proman Machine
Injection molding machine
Injection molding board detail display
Technical Parameter

Item	PM-700A		PM-950			PM-1300A			PM-1600A
Screw diameter(mm)	32	35	30	35	40	35	40	45	45	50	55
screw l/d ratio (l/d)	20	18.8	24.5	21	18.4	24	21	18.7	23.3	21	19.1
theoretical shot volume (mm3)	113	135	113	154	201	173	226	286	358	442	534
shot weight(ps)(g)	101	121	103	140	183	158	206	260	326	402	486
Injection pressure (mpa)	232	194	249	183	140	235	142	142	219	178	147
theoretical injection rate(ps)(g/s)	62	72	67.5	91.8	120	110	181	181	142	175	212
plasticising capacity(g/s)	11	12	8.3	12.5	18	13.8	19.7	27.1	20.1	26.5	34.2
max screw rotate speed (r/min)	220		260			250			200
injection stroke(mm)	140		160			180			225
clamping unit
Max.Clamping force(kn)	700		950			1300			1600
max.Opening stroke(mm)	290		340			400			460
space between (mm)	320*320		360*360			420*420			480*480
mould height(mm)	120-300		135-380			160-440			180-500
max. Daylight(mm)	590		720			840			960
other
Pump moter power(kw)	9		11			13			15
heating power(kw)	6.2		7.3			9.2			13.6
heating zone	4		4			4			4
Net weight	2.7		3.2			4.3			5.6
Oil tank capacity(t)	230		260			360			420
Intenational designation (l)	700-230		1600-785			1300-410			950-280

Certifications
Packaging & Shipping

About Us

FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

---
