| US$20,000.00-21,000.00 | 1 Set (MOQ) |

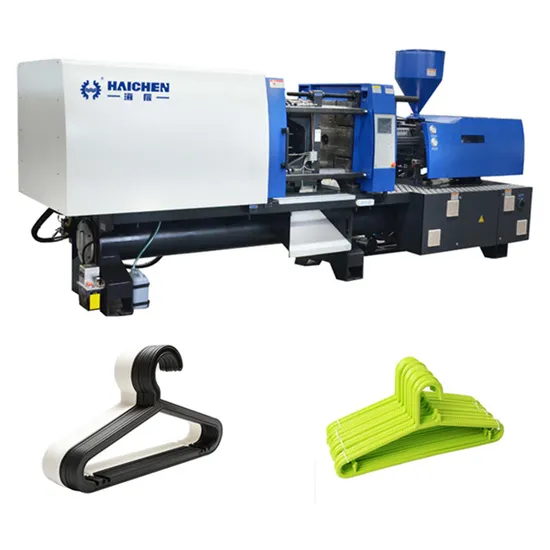

| item no | Plastic clothes hanger |
| size | 450*210mm |
| raw material | PP/PS |
| weight | 45g |
| output | about 500 pieces per hour |
| mould cavities | 2 |
| INTERNATIONAL CLASS NO | HCS260 | |||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 50 | 55 | 60 |
| Screw L/D Ratio | L/D | 24.2 | 22 | 20.2 |
| Shot Size(Theoretical) | cm³ | 530 | 641 | 763 |
| Injection Weight(PS) | g | 482 | 583 | 694 |
| Injection Rate | g/s | 187 | 227 | 270 |
| Injection Pressure | Mpa | 205 | 169 | 142 |
| Screw Speed | rmp | 180 | ||
| CLAMPING UNIT | ||||
| Clamp Tonnage | kN | 2600 | ||
| Toggle Stroke | mm | 540 | ||
| Space Between Tie Bars | mm | 570*570 | ||
| Max.Mold Height | mm | 600 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 150 | ||
| Ejectior Tonnage | kN | 70 | ||
| OTHER | ||||
| Pump Pressure | Mpa | 16 | ||
| Pimp Motor Power | kw | 22 | ||
| Heater Power | kw | 19 | ||
| Numbers of heating Segment | 4+1 | |||
| Machine Dimension(LxWxH) | m | 6.2*1.5*2.2 | ||
| Oiltank cubage | L | 385 | ||
| Machine Weight | t | 8.3 | ||
| INTERNATIONAL CLASS NO | HCK180 | |||
| INJECTION UNIT | ||||
| A | B | C | ||
| Screw diameter | mm | 40 | 45 | 50 |
| Screw L/D ratio | L/D | 22.5 | 20 | 18 |
| Shot volume(theoretical) | cm3 | 283 | 358 | 442 |
| Injiection weight(ps) | g | 257 | 326 | 402 |
| oz | 9.1 | 11.5 | 14.2 | |
| Injection pressure | Bar | 2231 | 1763 | 1428 |
| Injection rate | cm3/s | 126 | 159 | 196 |
| Plasticizing capacity | g/s | 16 | 22 | 26 |
| Screw speed (Max.) | r/min | 190 | ||
| CLAMPING UNIT | ||||
| Clamping force | kN | 1800 | ||
| Space between tie bars(W×H) | mm | 520×470 | ||
| Platens size | mm | 740×690 | ||
| Opening stroke | mm | 460 | ||
| Min.Mold height | mm | 200 | ||
| Max.Mold height | mm | 550 | ||
| Distance between platens(daylight | mm | 1010 | ||
| Ejector stroke | mm | 130 | ||
| Ejector force | kN | 50 | ||
| OTHERS | ||||
| Systerm pressure | Bar | 175 | ||
| Pump motor | KW | 20 | ||
| Heating power | kW | 10 | ||
| Oiltank cubage | L | 200 | ||
| Machine dimension(L×W×H) | m | 5.2×1.3×2.1 | ||
| Machine weight | t | 6 | ||
