R60-9vs Mini 6 Ton Hyundai Excavator

Product Description

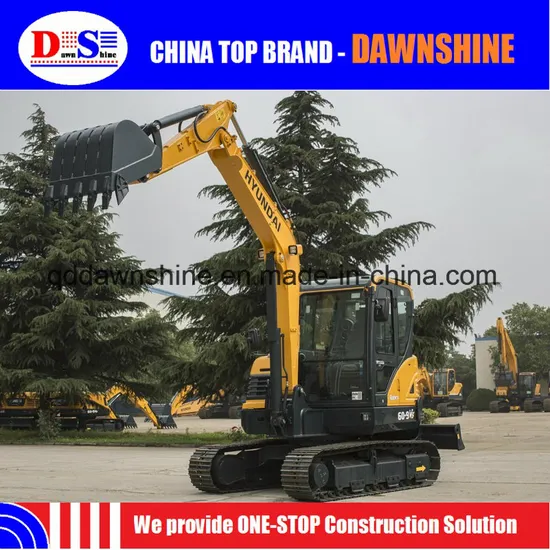

R60-9VS Mini 6 Ton Hyundai Excavator
. Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3/4/5.
. Except standard products, also customize products according to your requirements.
Details

Engine
Model		Yanmmar 4TNV94L-ZXSHYB (XSNSRE)
Type		4-cylinders, 4 stroke, water-cooling
		Direct injection type
Rated Power
SAE J1349	HP(kW)/rpm	48.5(36.2)/2200
Max. Torque	N.m/rpm	201.1/1400
Bore x Travel	mm	94 x 110
Displacement	cc	3053
Battery		1x12Vx100AH
Start Motor		12V-3.0kW
Generator		12V-80Amp
Hydraulic System
Main Pump
Type		Variable Piston Pump
Max. Flow	l/min	138
		LS load sensitive system
Hydraulic Motor
Travel		Dual-speed axial piston motor with
		brake valve and parking brake
Swing		Axial piston motor with auto-brake
Safety Valve Setting		kgf/cm3
Working device circuit		240
Travel		240
Swing system		230
Pilot valve circuit		35
Spare valve		install
Hydraulic Cylinder
Cylinder No.s - cyl. dia. x shaft dia. x travel
Main Boom		1-Φ105xΦ60x715
Auxiliary Boom		1-Φ85xΦ55x850
Bucket		1-Φ80xΦ50x660
Blade		1-Φ105xΦ55x214
Driving and Brake
Drive Type		Full Hydraulic
Driving Motor		Axial Piston Motor
Speed Reducing system		Planetary Reducer
Max. Trvavel Speed (High / Low)		4.6 km/h / 2.4km/h
Gradeability		35. (70%)
Parking Braker		Oil immersed multi disc brake system
