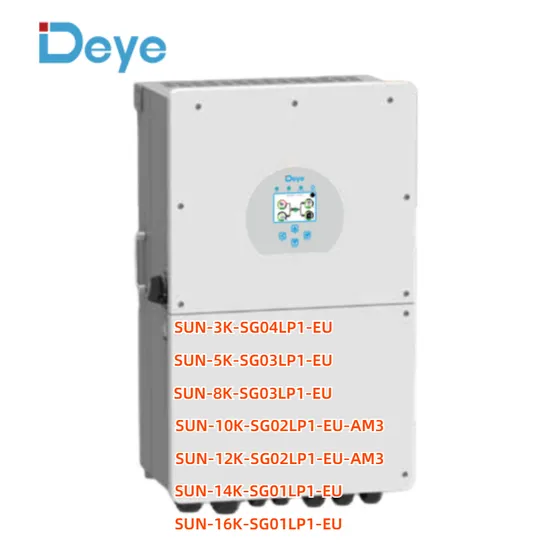

Deye Low Voltage Lnverter 3kw 16kw EU Standard Single Phase Sun-3/5/6/8/10/12K-Sg04lp1-EU Hybrid Inverter 48V for EU Using

Product Description

Product Description
1. Colorful touch LCD, IP65 protection degree
2. AC couple to retroft existing solar system
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
3. Max, charging/discharging current of 250A
4. 6 time periods for battery chargingsdischarging
5. Support storing energy from diesel generator1. Colorful touch LCD, lP65 protection degree
2. AC couple to retroft existing solar system
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
3. Max. charging/discharging current of 290A
4. 6 time periods for battery charging/discharging
5. Support storing energy from diesel generator
Product Parameters

Model	SUN-12K-SG01LP1-EU	SUN-14K-SG01LP1-EU	SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	220	250	290
Max. Discharging Current (A)	220	250	290
External Temperature Sensor	YES
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	15600	18200	20800
Max. DC Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated DC Input Voltage (V)	370
PV Input Current (A)	26+26+26
Max. Input Short-Circuit Current (A)	44+44+44
No. of MPP Trackers/ No. of Strings per MPP Tracker	3/2+2+2
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range (ºC)	-40 to +60ºC, >45ºC Derating
Cabinet Size (WxHxD mm)	464×763×282 (Excluding Connectors and Brackets)
Weight (kg)	48.5
Noise (dB)	≤30 dB

Certifications
Company ProfileAnhui Technology Import and Export Co Ltd (AHTECH) was founded in 1985, with its headquarters in Hefei, Anhui Province. In 2023, the company achieved a total import and export volume of US$2.0 billion and sales revenue of 15 billion yuan. It is a member enterprise of the Fortune Global 500 Anhui Conch Group.
Being deeply engaged in foreign trade for 39 years, AHTECH grows in step with the reform and opening up of China and the process of global economic integration. It has been mainly specializing in importing mechanical equipment, instruments and meters, metal minerals, agricultural, forest and food products, and new energy products, in a total of five categories. It also exports 10 categories of products, namely, ships and vessels; vehicles ;medical-care and epidemic prevention materials;electronic and home appliances and lighting products; machinery, metals, and building materials; textile and apparel; shoes, hats, suitcases and bags; consumer goods; office supplies and leisure goods; energy-related, chemical and food; Solar Panels and system. In addition, it is involved in overseas engineering projects. Thanks to its influential brands and large-scale business advantages in key commodity and regional markets, AHTECH has stood atop all the time in Anhui in terms of import and export volume.
Being a Grade-A rated tax credit enterprise honored by the State Taxation Administration, in the first category for export tax rebate, with an Authorized Economic Operator (AEO) certificate issued by the General Administration of Customs P.R.China and AAA-rated customer of China Export & Credit Insurance Corporation(Sinosure), the company has also made the sampling list of the Export Leading Indicator (ELI) in China. AHTECH has been elected vice president unit of China Chamber of Commerce for Import and Export of Machinery and Electronic Products (CCCME), China Chamber of Commerce for Import and Export of Light industrial Products and Arts-Crafts (CCCLA), and China Chamber of Commerce for Import and Export of Textile and Apparel (CCCT). It is also an executive director unit of China Chamber of Commerce for Metals, Minerals & Chemicals Importers & Exporters (CCCMC) and China Ropeway Association (CRA), and the president unit of Anhui Customs Declaration Association.Project Case
WarehouseFAQ Q: What's your main products?
A: Solar Panels in different Tier 1 Brand; Solar Inverters ( On Grid / Off Grid / Hybrid ); Rack / Stack / Wall Mounted Lithium Batteries; Solar energy storage battery; ESS Stockage; Solar Energy System For Residential and Commercial Use;
Q: What's the delivery time?
A: Generally within 7-15 days, it will vary based on different products, pls kindly check with our customer service for details, we will arrange it for you as soon as possible;
Q: What kind of payment terms are acceptable?
A: We are flexible with payment conditions, it depends on you;
Q: If I have other questions, who should I ask?
A: You can contact us online and our sales will reply within 10 minutes;
Q: What are the advantages of your company?
A: We have our own factory and also have deep cooperation with other brands,such as Longi,JA solar,Jinko,Trina,Yingli, Deye, Growatt etc., to provide customers with better prices and more choices.
