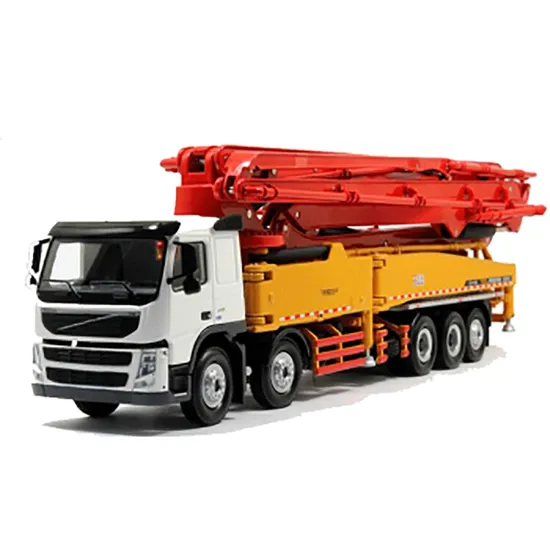

China New 60m 61m 62m 68m 71m 38-48m 49-55m Cement Concrete Boom Pump Truck

Product Description

Product Description
China New 60m 61m 62m 68m 71m 38-48m 49-55m Cement Concrete Boom Pump Truck
Energy-saving With cycle times of up to 29 per minute (at 12MPa), pumpefficiency is increased up to 25% while fuel consumption is decreased by up to 10%. Safey
Our C10 series truck mounted concrete pump exemplifies Top brand's precise, rigorous manufacturing philosophy and uncompromising focus on safety.
Highly Wear Resistant Part
The highly wear resistant parts improve efficiency and reduce down time. Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.

Detailed Photos

Product Parameters

Vehicle parameters	Overall length		mm	13860
	Overall width		mm	2550
	Overall height		mm	4000
	Total weight		kg	44000
	Boom vertical height		m	56
	Boom horizontal length		m	51
	Boom vertical depth		m	36.6
	Mini. unfolded height		m	15.2
Boom leg parameters	The first section of the boom	length	mm	11390
		turning angle		89°
	Second section arm	length	mm	9230
		turning angle		180°
	Third section arm	length	mm	8750
		turning angle		180°
	Fourth section arm	length	mm	11070
		turning angle		240°
	Fifth section arm	length	mm	8080
		turning angle		210°
	Sixth section arm	length	mm	3350
		turning angle		110°
	Turntable rotation angle			±360°
	Expansion width of front outriggers		mm	9470
	Rear outrigger expansion width		mm	12680
