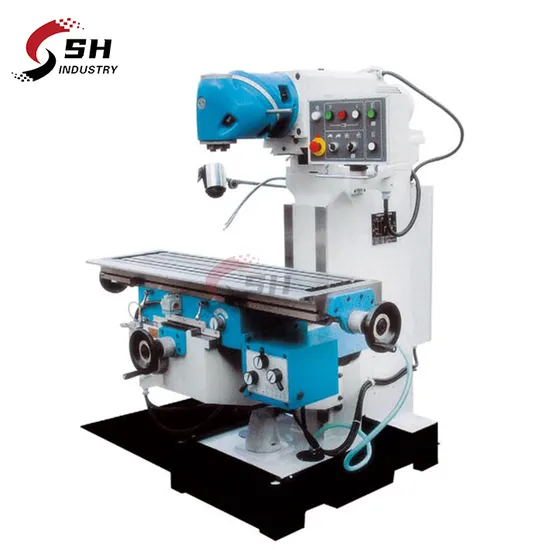

High Precision Rotary Head Metal Milling Machine X6226 Universal Swivel Head Milling Machine

Product Description

High precision rotary head metal milling machine X6226 Universal swivel head milling machine
Product Description
Features:
1.Hardened guideway
2. X.Y axis auto feeding, Z axis motorized lift as optional accessory
3. Mill head swivel ±360 degree with high performance
Main technical specifications:

specificazioni	XQ6226W
Max.vertical milling dia (mm)	125
Max. vertical milling cutter dia (mm)	28
Swivel angle at awivel head(°)	±360°
Table size(mm)	1270*260
Table travel(mm)	750*300*430
Ram travel(mm)	420
Main motor(kw)	3(V) 3(h)
Distance from spindle to table(mm)	560
spindle speed Range (r.p.m)	35-1600
Horizontal spindle speed range	40-1300
Overall dimensions(mm)	1655*1500*1730
N.W/G.W (kg)	1480/1660

Detailed Photos
Company Profile



Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
