XCMG Folding Arm Working Platform Xga16AC China 16m Used Towable Boom Lift Platform for Sale

Product Description

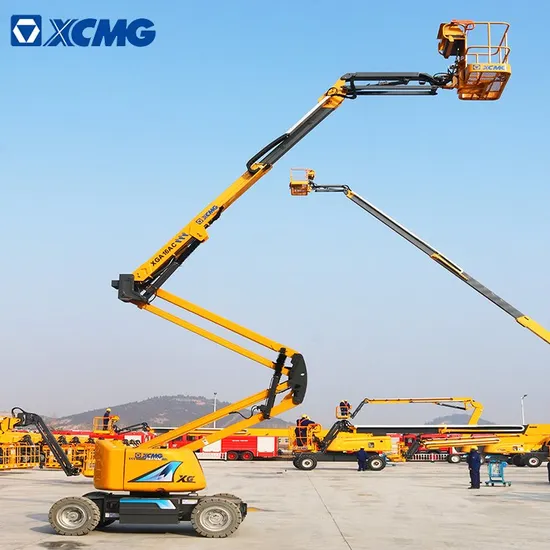

XCMG Folding Arm Working Platform XGA16AC China 16m Used Towable Boom Lift Platform.
XCMG XGA16AC Electric articulated mobile elevating work platform, compact structures and vehicle body 1.75m wide. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
1. Σ-shaped boom combine and zero tail swing design make it more productive.
2. As small as 3.15m turning radius enables the machine to work in narrow space.
3. 48V and 420Ah large-capacity battery makes the cruising ability longer.
4. Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%.
5. DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.
6. Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate. Product Parameters

Parameters of running state
Overall dimensions (L × W × H)	6.42×1.75×2 m
Working platform overall dimensions	1.4×0.7×1.15 m
Max. speed	5.2 km/h
Max. gradeability	≥30%
Min. external turning radius	≤3.15 m
Ground clearance/m (centre)	0.21 m
Wheelbase	2 m
Total mass	6500 kg
Main Operation Performance Parameters
Rated working height	15.5 m
Max. platform height	13.8 m
Max. working range	8 m
Max. net spanning height	7.03 m
Scope of luffing of No. 1 arm	0°~60°
Scope of luffing of No. 2 arm	-8°~75°
Scope of crank arm luffing	-60°~80°
Scope of platform swing	160°
Slewing angle	355°
Slewing radius of turntable	0.875 m
Max. load capacity	227 kg
Max. rearward slewing	0 m
Control system	12V DC proportional control
Tire	250-15 solid tire, optional foam tire 240/55 D17.5
Power parameters
Power source	420 Ah/48 V DC
Power unit	4 kw/48 V DC
Auxiliary power unit	2.2 kw/24 V DC
Traveling motor	3.3 kw/32 V AC
