Jaw Plate in Crusher for Exporting to Global

Product Description

Crusher Spare parts
We supply spare parts such as jaw plates, blow bars, liner plates, hammers, mantles, concaves, crusher backing, wedges, bolts and nuts etc. They are widely used in metal recycling, mining, metallurgical, chemical, cement, oil and other sectors of machinery and equipment. We are able to produce high manganese steel, high chromium steel, alloy steel, cast iron, stainless steel, carbon steel, heat-resistant steel casting according to customer's technical drawings.
Additional Info:
Packing: Export Packing Stand
Standard: According customer requirements
Origin: China
HS Code: 84749000
Product Description:

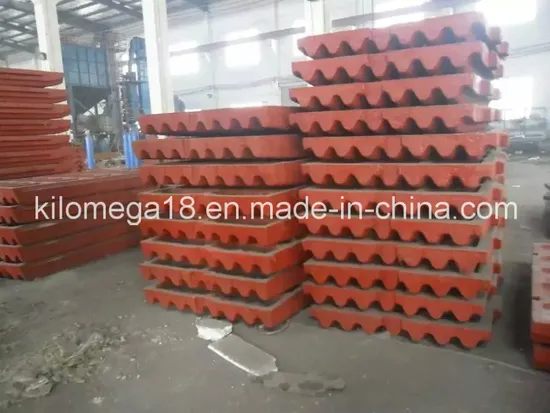

JAW PLATE
High manganese crusher parts
1. Fixed jaw plate, movable jaw plate
2. Mn13 Cr2 Mn14Cr2 Mn18Cr2
3. Customer designed.
4. Used for mining industry

Crusher Parts specification
name	model	weight(kg)	number of teeth(pcs)	photo number	size(MM)
750*1060 Jaw Crusher	fixed Plate	1250	8	K3206-3b	1680*1040*145
	movable Plate	1420	7	K3206-20b	1890*1040*145
	side plate up	230*2		K3107-5
	side plate dowm	154*2		K3107-3
600*900 Jaw Crusher	fixed Plate	735	9	K3126-01-06D
	movable Plate	745	10	K3126-02-20D
	side plate right and left	235*2
	side plate up	135
	side plate dowm	86
500*750 Jaw Crusher	fixed Plate	490	9	K3204-1D	1170*750/820*110
	movable Plate	520	8	K3204-2D	1330*750*130
	side plate right and left	125		K3201-42
350*750 Jaw Crusher	fixed Plate	280	16	K31X05-
	movable Plate	335	15	K31X05-
	side plate right and left	65		K3105-7 8
150*750 Jaw Crusher	fixed Plate	100	25	K31X02
	movable Plate	110	26	K31X02
	side plate right and left	20
300*1300 Jaw Crusher	fixed Plate	445	33	K31X10-2	1305*800*90
	movable Plate	455	34	K31X10-4	1300*860*90
	side plate right and left	70*2
400*600 Jaw Crusher	fixed Plate	215	12	K3103-2
	movable Plate	218	13	K3103-3
	side plate right and left	80*2		K3103-11 13
150*250 Jaw Crusher	fixed Plate	22	8	K3101-2
	movable Plate	24	9	K3101-3
	side plate right and left	10
250*1200 Jaw Crusher	fixed Plate	385	30	K31X06-3
	movable Plate	400	31	K31X06-2
	side plate right and left	62		K31X06-10 11
250*1000 Jaw Crusher	fixed Plate	310	25	K31X04-4
	movable Plate	315	26	K31X04-3
	side plate right and left	62*2
250*750 Jaw Crusher	fixed Plate	205	19	K31X08-2
	movable Plate	216	20	K31X08-1
	side plate right and left	62		K31X08-7 8
250*500 Jaw Crusher	fixed Plate	110	13	K3128-5
	movable Plate	120	14	K3128-23
	side plate right and left	30
250*400 Jaw Crusher	fixed Plate	90	11	K3124-001-5	635*400/460*70
	movable Plate	110	12	K3124-002-13	725*400*90
	side plate right and left	38*2
	fixed Plate		14		635*400/460*70
	movable Plate		15		725*400*90
1315Impact Crusher	impact liner	38	40	K3611.1-1
1214Impact Crusher	impact liner	28		K3602
	liner01-11	22
	liner-13	28
	blow bar length1050	170		K3603.04-13
	blow bar length1610	270		K3602.04-14
900*1200 Jaw Crusher	fixed Plate	1962		K3105.1
	movable Plate	1840		K3105.2
900*1200 Jaw Crusher	fixed1	675*2			1250*845*145
	fixed2	430			1250*435*145
	movable1	650*2			1180*860*145
	movable2	400			1180*430*145
	side plate up	230*2			1260*900/590*35
	side plate dowm	95*2			950*582/236*35
press block (2pcs/set)	250*1200	22/set
	400*600	38/set
	250*1000	20/set
	600*900	36/set

Blow bar
Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
1 .Increased wear life
2 .Less on-going wear part maintenance
3. Designs and tools for quicker change out

High manganese blow bar
Material	ZG120Mn13Cr2, ZG120Mn18Cr2, ZG120Mn13Cr2 tungsten titanium alloy
Control	Spectrometer chemical analysis and control while producing
Molding Process	Water-glass sand casting or lost form casting
Melting facility	Medium frequency electric furnace
Heat Treatment	Anneal, quenching, tempering
Quality Guarantee	One year against manufacturing defeat
Testing	Hardness, flaw detector test
Certificate	ISO9001:2008;BUREAU VERITAS
OEM	Accepted
Suit Filed	Cement, mining, quarry, power and metallurgy companies

Mantle and Concave
1. Cone crusher parts main Material:
High manganese steel: Mn13%, Mn18%, Mn22%, Mn24%;
High chromium iron: Cr20, Cr24 up
Carbon steel
2.High Manganess Casting Material Chemical Composition

Material Code	C	Mn	Si	Cr	P	S
ZGMn13Cr2	C:0.9-1.3	Mn:11.0-14.0	Si:0.3-1.0	Cr:1.5-2.5	P:≤0.06	S:≤0.04
ZGMn18Cr2	C:1.1-1.5	Mn:16.5-19.0	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04
ZGMn22Cr2	C:1.1-1.4	Mn:20-24	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04

3.Full Range for Crusher Wear Liners & Parts:

	GP100,GP11,GP300,GP500,HP100,HP200,HP300,HP400,HP500,HP700,HP800
Metso	C63 C80 C100 C110 C125 C140 C160 C200
	GP100,GP300,GP500
Sandvik	H2800 H3800 H4800 H6800 H7800 H8800,S2800 S3800 S4800 S6800
	JM907 JM1107 JM1108 KM1206 JM1208 JM1211 JM1312 JM1511 JM1513
	CS420/S2800, CS430/S3800, CS440/S4800, CS660/S6800
Symons	2FT 3FT 4FT 4800 4¼ FT 5100 5½ FT 7FT Standard and Shorthead

We are supplying:
Jaw Crusher Jaw Plates
Jaw Crusher Toggle Plates
Jaw Crusher side plate
Impact Crusher Blow Bars
Impact Crusher impact Liners
Impact Crusher Curtains
Hammer Crusher Hammer Heads
Hammer Crusher Sieve Plates
Cone Crusher Concave
Cone Crusher Mental
Stone Crusher Liner Plates
Crusher Rotors
Crusher Screen mesh
Conveyor belt
rollers

---
